Product Summary
The TLC27L2CDR is a dual operational amplifier, which combines a wide range of input offset voltage grades with low offset voltage drift, high input impedance, extremely low power, and high gain. The TLC27L2CDR uses Texas Instruments silicon-gate LinCMOSE technology, which provides offset voltage stability far exceeding the stability available with conventional metal-gate processes.
Parametrics
TLC27L2CDR absolute maximum ratings: (1)Supply voltage, VDD: 18 V; (2)Differential input voltage: ±VDD; (3)Input voltage range, VI (any input): –0.3 V to VDD; (4)Input current, II: ±5 mA; (5)Output current, IO (each output): ±30 mA; (6)Total current into VDD: 45 mA; (7)Total current out of GND: 45 mA; (8)Duration of short-circuit current at (or below) 25℃: Unlimited; (9)Operating free-air temperature, TA: C suffix: 0℃ to 70℃, I suffix: –40℃ to 85℃, M suffix: –55℃ to 125℃; (10)Storage temperature range: –65℃ to 150℃; (11)Case temperature for 60 seconds: FK package: 260℃; (12)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D or P package: 260℃; (13)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: JG package: 300℃.
Features
TLC27L2CDR features: (1)Trimmed Offset Voltage: 500 μV Max at 25℃, VDD = 5 V; (2)Input Offset Voltage Drift: Typically 0.1 μV/Month, including the First 30 Days; (3)Wide Range of Supply Voltages Over Specified Temperature Range: 0℃ to 70℃: 3 V to 16 V, –40℃ to 85℃: 4 V to 16 V, –55℃ to 125℃: 4 V to 16 V; (4)Single-Supply Operation; (5)Common-Mode Input Voltage Range Extends Below the Negative Rail (C-Suffix, I-Suffix Types); (6)Ultra-Low Power: Typically 95 mW at 25℃, VDD = 5 V; (7)Output Voltage Range includes Negative Rail; (8)High Input Impedance: 1012 Ω Typ; (9)ESD-Protection Circuitry; (10)Small-Outline Package Option Also Available in Tape and Reel; (11)Designed-In Latch-Up immunity.

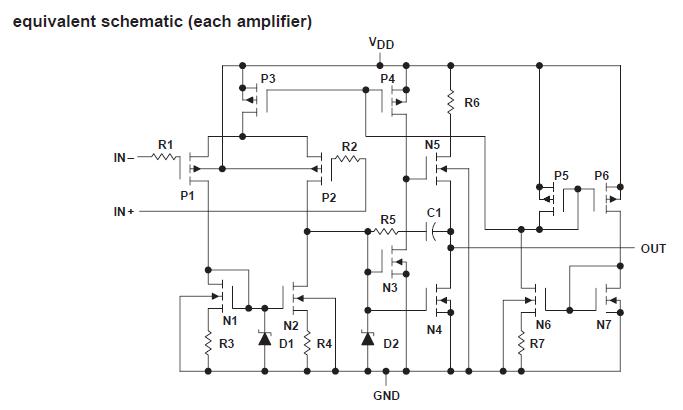

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLC27L2CDR |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Prec Op Amp |
Data Sheet |
|
|
||||||||||||
|
TLC27L2CDRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Precision Single Supply uPower |
Data Sheet |
|
|
||||||||||||
