Product Summary

The TD62783AFG is a 8 ch High-Voltage Source Driver. It is comprised of eight source current Transistor Array. The TD62783AFG is specifically designed for fluorescent display applications. Applications include relay, hammer and lamp drivers. The suffix (G) appended to the part number represents a Lead (Pb)-Free product.

Parametrics

TD62783AFG absolute maximum ratings: (1)Supply voltage, VCC: 50 V; (2)Output current, IOUT: -500 mA/ch; (3)Input voltage, VIN: 15V; VIN: 30V; (4)Clamp diode reverse voltage, VR: 50 V; (5)Clamp diode forward current, IF: 500 mA; (6)Power dissipation, APG 1.47, PD: 1.47W; AFG: 0.96W; (7)Operating temperature, Topr: -40 to 85℃; (8)Storage temperature, Tstg: -55 to 150℃.

Features

TD62783AFG featurs: (1)High output voltage: VCC = 50 V (min); (2)Output current (single output): IOUT = -500 mA (min); (3)Output clamp diodes; (4)Single supply voltage; (5)Input compatible with various types of logic; (6)Package type-APG: DIP-18 pin; (7)Package type-AFG: SOP-18 pin.

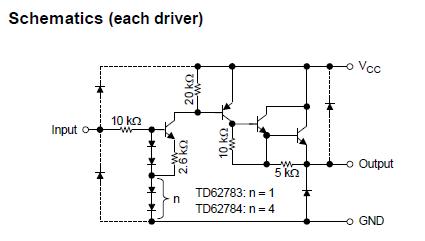

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TD62783AFG(5,S)
TD62783AFG(5,S)
Toshiba
Display Drivers & Controllers 8CH. 50V/.5A IFD IC
Data Sheet
Negotiable
TD62783AFG(5,S,EL)
TD62783AFG(5,S,EL)
Toshiba
Display Drivers & Controllers 8CH. 50V/.5A IFD IC
Data Sheet
Negotiable
TD62783AFG(O,S,EL)
TD62783AFG(O,S,EL)
Toshiba
Display Drivers & Controllers 8-Ch NPN Driver 50V -500mA 5V
Data Sheet
0-1: $1.32
1-10: $1.13
10-100: $1.02
100-250: $0.94
TD62783AFG(O,S)
TD62783AFG(O,S)
Toshiba
Display Drivers & Controllers 8-Ch NPN Driver 50V -500mA 5V
Data Sheet
0-1: $1.32
1-10: $1.13
10-100: $1.02
100-250: $0.94
