Product Summary
The L7805 is a three-terminal positive regulator. The L7805 can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. The L7805 is available in TO-220, TO-220FP, TO-3 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications. It can be used with external components to obtain adjustable voltage and currents.
Parametrics
L7805 absolute maximum ratings: (1)Output current:Internally Limited; (2)Power dissipation:Internally Limited; (3)Storage temperature range:-65℃ to 150℃; (4)Operating junction temperature range:0℃ to 150℃; (5)DC Input voltage: for VO= 5 to 18 V:35V, for VO= 20, 24 V:40V.
Features
L7805 features: (1)Output current to 1.5 A; (2)Output voltages of 5; 5.2; 6; 8; 8.5; 9; 10; 12; 15; 18; 20; 24V; (3)Thermal overload protection; (4)Short circuit protection; (5)Output transition SOA protection.

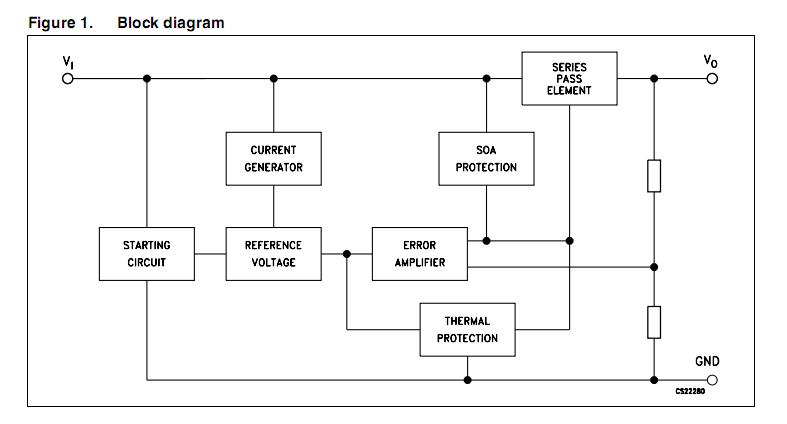

Diagrams
