ST1284-02A8R

single termination network, QSOP28, 1W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: ST1284-02A8R

Brand:: STMicroelectronics - ST | Pack: SSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-26

From Other Seller

Part Number:ST1284-02A8R
US $0.10 - 1.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

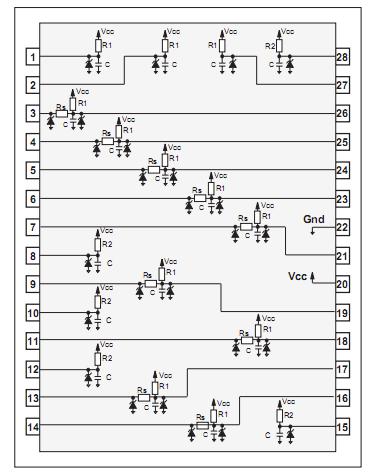

The ST1284-02A8R is a parallel port single termination network with ±15kV ESD protection. It complies to the IEEE1284 Standard recommendations and government EMC compatibility requirements. The ST1284-02A8R is built around two basic cells. The first one (Cell 1) provides line termination, EMI filtering and ESD protection for the Strobe and Datalines while the second one(Cell 2) provides EMI filtering and ESD protection for the Control and Status lines. In addition, the ST1284-02A8R provides extra protection against ESD. When tested according to IEC61000-4-2, they withstand ±8kV contact discharges and ±15kV air-discharges, thereby providing to the system the necessary robustness to meet up to level 4 of IEC61000-4-2, without the need for additional ESD protection components. The applications of the ST1284-02A8R include Desktops, Notebooks, Workstations, Servers, PC Peripherals, Set Top Box.

Parametrics

ST1284-02A8R absolute maximum ratings: (1)ESD discharge IEC61000-4-2, air discharge:±16 kV; (2)ESD discharge IEC61000-4-2, contact discharge:±9 kV; (3)ESD discharge - MIL STD 883E - Method 3015-7:±25 kV; (4)Supply voltage:5.5 V; (5)Power rating per resistor:100 mW; (6)Package Power rating:1W; (7)Operating temperature range:0℃ to +70℃; (8)Storage temperature range:-55℃ to +150℃; (9)Maximum operating junction temperature:125℃.

Features

ST1284-02A8R features: (1)One device for parallel port termination; (2)Compliant with IEEE1284 standard; (3)EMI / RFI noise filtering; (4)Highly integrated solution in 28 pin QSOP and TSSOP packages; (5)One single device provides the proper termination for 8 datalines, 1 strobe line, 4 control lines and 4 statuts lines; (6)In system ESD protection of ±15 kV (air discharge) as per IEC61000-4-2 level 4.
