Product Summary

The SN75C189ADR is a quadruple low-power line receiver. It is used to interface data terminal equipment (DTE) with data circuit-terminating equipment (DCE). The SN75C189ADR has been designed to conform to TIA/EIA-232-F. Each receiver has provision for adjustment of the overall input threshold levels. This is achieved by choosing external series resistors and voltages to provide bias levels for the response-control pins. The output is in the high logic state if the input is open circuit or shorted to ground. The SN75C189ADR has been designed using low-power techniques in a bipolar technology.

Parametrics

SN75C189ADR absolute maximum ratings: (1)Supply voltage, VCC: 7 V; (2)Input voltage range, VI: –30 V to 30 V; (3)Output voltage range, VO: –0.3 V to VCC+ 0.3 V; (4)Package thermal impedance, θJA: D package: 86℃/W, DB package: 96℃/W, N package: 80℃/W; (5)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (6)Storage temperature range, Tstg: –65℃ to 150℃.

Features

SN75C189ADR features: (1)Meet or Exceed the Requirements of TIA/EIA-232-F and ITU Recommendation V.28; (2)Low Supply Current: 420 μA Typ; (3)Preset On-Chip Input Noise Filter; (4)Built-in Input Hysteresis; (5)Response and Threshold Control Inputs; (6)Push-Pull Outputs; (7)Functionally Interchangeable and Pin-to-Pin Compatible With Texas Instruments SN75189/SN75189A and Motorola MC1489/MC1489A; (8)Package Options Include Plastic Small-Outline (D) and Shrink Small-Outline (DB) Packages, and Standard Plastic (N) DIP.

Diagrams

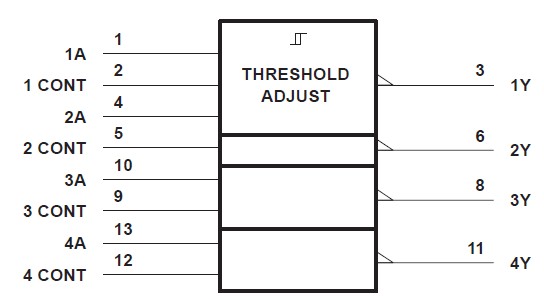

SN75C189ADR diagram
