Product Summary

The SN74LVC32APWR is a quadruple 2input positive-or gate. The SN74LVC32APWR quadruple 2-input positive-OR gate is designed for 2.7-V to 3.6-V VCC operation. Inputs can be driven from either 3.3-V or 5-V devices. The feature of the SN74LVC32APWR allows the use of this device as a translator in a mixed 3.3-V/5-V system environment.

Parametrics

SN74LVC32APWR absolute maximum ratings: (1)Supply voltage range, VCC: 0.5 V to 6.5 V; (2)Input voltage range, VI: 0.5 V to 6.5 V; (3)Output voltage range, VO: 0.5 V to VCC + 0.5 V; (4)Input clamp current, IIK (VI < 0): 50 mA; (5)Output clamp current, IOK (VO < 0): 50 mA; (6)Continuous output current, IO: ±50 mA; (7)Continuous current through VCC or GND: ±100 mA; (8)Storage temperature range, Tstg: 65℃ to 150℃.

Features

SN74LVC32APWR features: (1)Qualification in Accordance With AEC-Q100 Qualified for Automotive Applications; (2)Customer-Specific Configuration Control. Can Be Supported Along With Major-Change Approval; (3)ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0); (4)Operates From 2 V to 3.6 V; (5)Inputs Accept Voltages to 5.5 V; (6)Max tpd of 3.8 ns at 3.3 V.

Diagrams

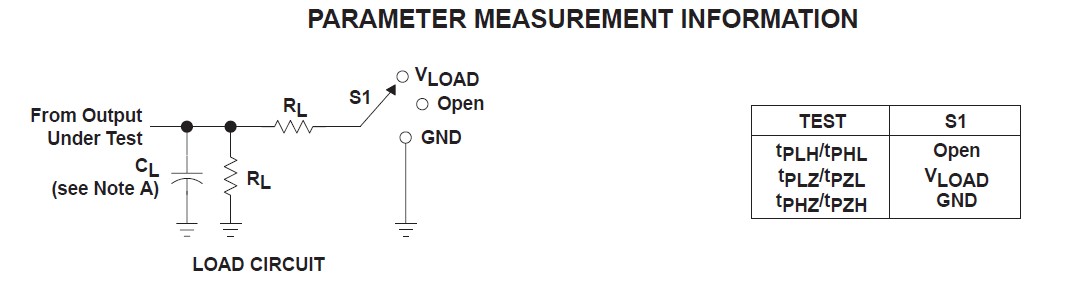

SN74LVC32APWR diagaram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN74LVC32APWR
SN74LVC32APWR

Texas Instruments

Gates (AND / NAND / OR / NOR) Quad 2-Input

Data Sheet

0-1: $0.24
1-25: $0.16
25-100: $0.13
100-250: $0.11
SN74LVC32APWRE4
SN74LVC32APWRE4

Texas Instruments

Gates (AND / NAND / OR / NOR) Quadruple 2-Input Positive-OR Gate

Data Sheet

0-1: $0.19
1-25: $0.14
25-100: $0.12
100-250: $0.10
SN74LVC32APWRG4
SN74LVC32APWRG4

Texas Instruments

Gates (AND / NAND / OR / NOR) Quadruple 2-Input Positive-OR Gate

Data Sheet

0-1: $0.28
1-25: $0.18
25-100: $0.15
100-250: $0.12
SN74LVC32APWRG3
SN74LVC32APWRG3

Texas Instruments

Gates (AND / NAND / OR / NOR) Quad 2-Input Pos-OR Gate

Data Sheet

0-1: $0.19
1-25: $0.14
25-100: $0.12
100-250: $0.10
