Product Summary

The SN74LVC245ADWis an octal BUS transceiver with 3-state outputs. The SN74LVC245A is designed for asynchronous communication between data buses. The device transmits data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the SN74LVC245ADW so the bus effectively is isolated.

Parametrics

SN74LVC245ADW absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 to 6.5 V; (2)Input voltage range, VI: -0.5 to 6.5 V; (3)Voltage range applied to any output in the high-impedance or power-off state, VO: -0.5 to 6.5 V; (4)Voltage range applied to any output in the high or low state, VO: -0.5 to VCC + 0.5 V; (5)Input clamp current, VI < 0, IlK: -50mA; (6)Output clamp current, VO < 0, IOK: -50mA; (7)Continuous output current, IO: ±50mA; (8)Continuous current through: ±100mA; (9)Package thermal impedance, DB package: 70℃/W; (10)Storage temperature range, Tstg: -65 to 150℃.

Features

SN74LVC245ADW features: (1)Operates From 1.65 V to 3.6 V; (2)Inputs Accept Voltages to 5.5 V; (3)Max tpd of 6.3 ns at 3.3 V; (4)Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25℃; (5)Typical VOHV (Output VOH Undershoot) >2 V at VCC = 3.3 V, TA = 25℃; (6)Ioff Supports Partial-Power-Down Mode Operation; (7) Supports Mixed-Mode Signal Operation on All Ports (5-V Input/Output Voltage with 3.3-V VCC); (8) Latch-Up Performance Exceeds 250mA Per JESD 17; (9) ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A), 1000-V Charged-Device Model (C101).

Diagrams

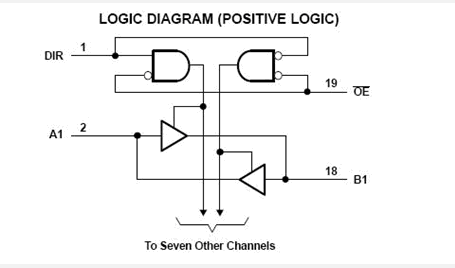

SN74LVC245ADW circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN74LVC245ADW
SN74LVC245ADW

Texas Instruments

Bus Transceivers Tri-State Octal Bus

Data Sheet

0-1: $0.30
1-25: $0.24
25-100: $0.18
100-250: $0.18
SN74LVC245ADWE4
SN74LVC245ADWE4

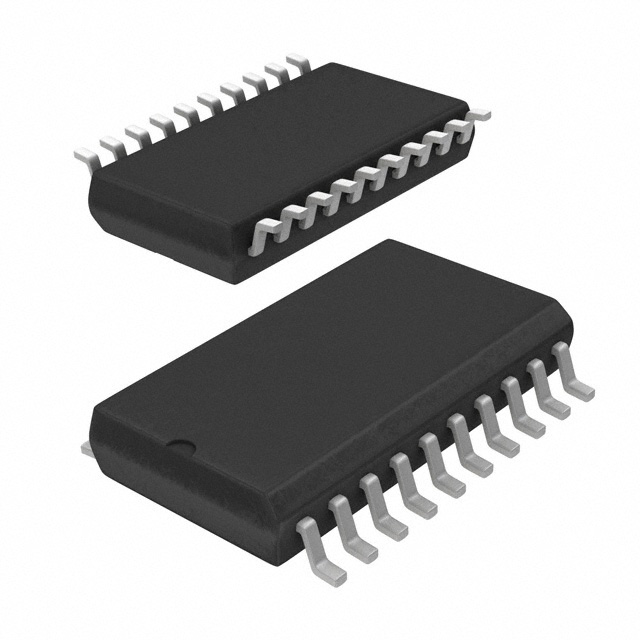

IC BUS TRANSCEIVER 8BIT 20SOIC

Data Sheet

0-2100: $0.11
SN74LVC245ADWR
SN74LVC245ADWR

Texas Instruments

Bus Transceivers Tri-State Octal Bus

Data Sheet

0-1: $0.29
1-25: $0.22
25-100: $0.19
100-250: $0.16
SN74LVC245ADWRG4
SN74LVC245ADWRG4

Texas Instruments

Bus Transceivers Octal Bus Trnscvr With 3-State Outputs

Data Sheet

0-1: $0.27
1-25: $0.21
25-100: $0.18
100-250: $0.12
SN74LVC245ADWRE4
SN74LVC245ADWRE4


IC BUS TRANSCEIVER 8BIT 20SOIC

Data Sheet

0-4000: $0.09
SN74LVC245ADWG4
SN74LVC245ADWG4


IC BUS TRANSCEIVER 8BIT 20SOIC

Data Sheet

0-2100: $0.11
