Product Summary
The SN74LS673N is a 16-bit TTL register file incorporates the equivalent of 98 gates. The SN74LS673N is organized as 4 words of 4 bits each and separate on-chip decoding is provided for addressing the four word locations to either write-in or retrieve data. The SN74LS673N permits simultaneous writing into one location and reading from another word location. Four data inputs are available which are used to supply the 4-bit word to be stored. Location of the word is determined by the write-address inputs A and B in conjunction with a write-enable signal. Data applied at the inputs should be in its true form. That is, if a high-level signal is desired from the output, a high-level is applied at the data input for that particular bit location.
Parametrics
SN74LS673N absolute maximum ratings: (1)Supply voltage, Vcc: 7 V; (2)Input voltage: 7 V; (3)Off-state output voltage: 5.5 V; (4)Operating free-air temperature range: 0℃ to 70℃; (5)Storage temperature range: -65℃ to 150℃.
Features
SN74LS673N features: (1)Separate Read/Write Addressing Permits Simultaneous Reading and Writing; (2)Fast Access Times: Typically 20 ns; (3)Organized as 4 Words of 4 Bits; (4)Expandable to 512 Words of n-Bits; (5)For Use as: Scratch-Pad Memory; Buffer Storage between Processors; Bit Storage in Fast Multiplication Designs; (6)3-State Outputs; (7)SN54LS170 and SM74LS170 Are Similar But Have Open-Collector Outputs.

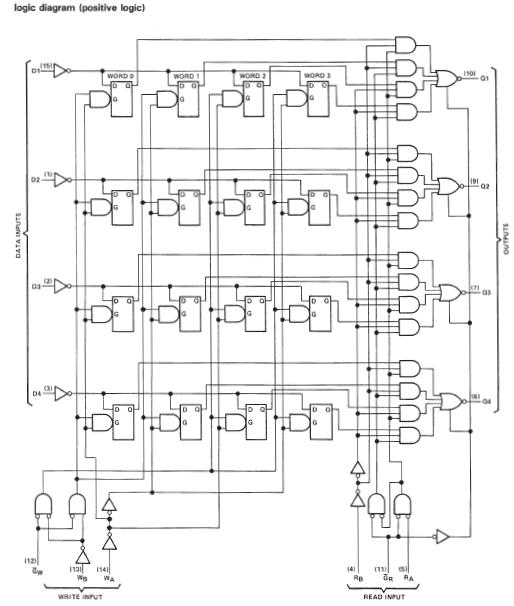

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74LS673N |
Texas Instruments |
Counter Shift Registers Serial In Shift |
Data Sheet |
|
|
||||||||||||
|
SN74LS673NE4 |
Texas Instruments |
Counter Shift Registers Serial-in shift Register |
Data Sheet |
|
|
||||||||||||
