Product Summary

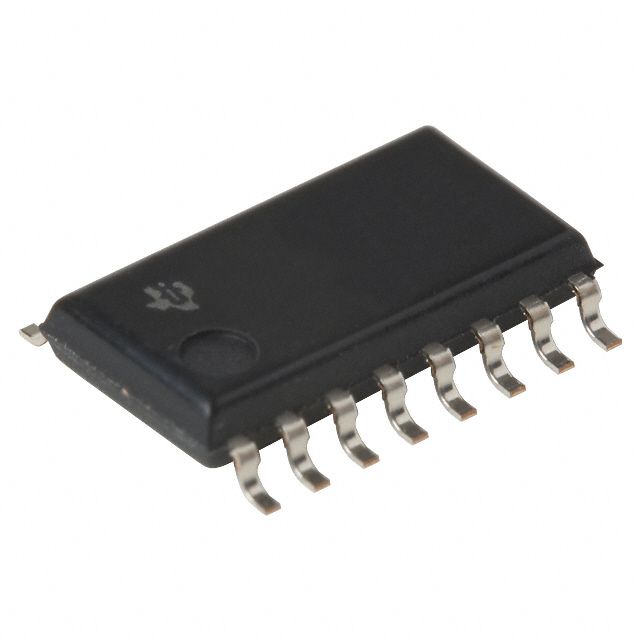

The SN74LS592NSR is an 8-bit binary counter with input registers. It comes in a 16-pin package and consists of a parallel input, 8-bit storage register feeding an 8-bit binary counter.
Parametrics
SN74LS592NSR absolute maximum ratings: (1)supply voltage, VCC: 7V; (2)input voltage: 7V; (3)off-state output voltage: 5.5V; (4)operating free-air temperature range: -55 to 125℃; (5)storage temperature range: -65 to 150℃.
Features
SN74LS592NSR features: (1)parallel register inputs; (2)con\unter has direct overriding load and clear; (3)accurate counter frequency: DC to 20MHz.

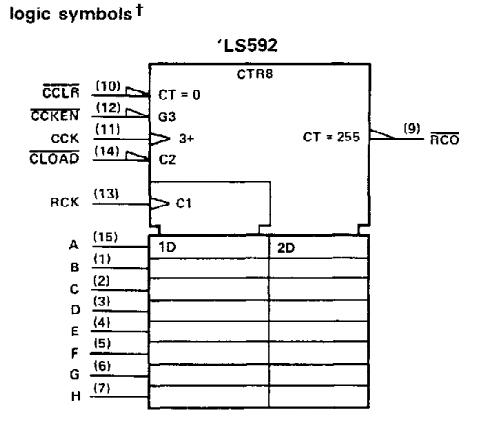

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74LS592NSR |
Texas Instruments |
Counter ICs 8-Bit Bin Counter Input Register |
Data Sheet |
|
|
||||||||
|
SN74LS592NSRE4 |
Texas Instruments |
Counter ICs 8-Bit Bin Counter Input Register |
Data Sheet |
|
|
||||||||
|
SN74LS592NSRG4 |
Texas Instruments |
Counter ICs 8B Binary Counters |
Data Sheet |
|
|
||||||||
