Product Summary

Parametrics

Manufacturer: Texas Instruments
Logic Type: Inverter, Buffer
Number of Inputs: 1
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Packaging: Tape & Reel (TR)Alternate Packaging
Features: -
Voltage - Supply: 4.5 V ~ 5.5 V
Logic Level - High: 2V
Logic Level - Low: 0.8V
Number of Circuits: 6
Current - Quiescent (Max): 2µA
Supplier Device Package: 14-SOIC
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Current - Output High, Low: 4mA, 4mA
Series: 74HCT
Max Propagation Delay @ V, Max CL: 18ns @ 5.5V, 50pF

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

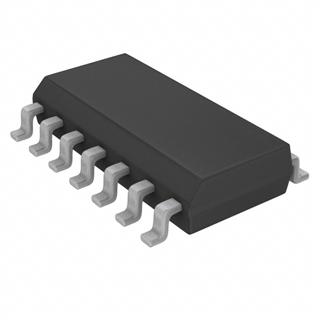

SN74HCT04DR
SN74HCT04DR
Texas Instruments
Inverters Hex
Data Sheet
0-1: $0.32
1-25: $0.18
25-100: $0.15
100-250: $0.11
SN74HCT04DRE4
SN74HCT04DRE4
Texas Instruments
Inverters HEX INVERTERS
Data Sheet
0-1: $0.20
1-25: $0.16
25-100: $0.12
100-250: $0.08
SN74HCT04DRG4
SN74HCT04DRG4
Texas Instruments
Inverters Hex Inverters
Data Sheet
0-1: $0.23
1-25: $0.16
25-100: $0.12
100-250: $0.09
