Product Summary

The SN74HCT00DR is a quadruple 2-input positive-nand gate. This device contains four independent 2-input NAND gates.

Parametrics

SN74HCT00DR absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (5)Continuous current through VCC or GND: ±50 mA; (6)Package thermal impedance, θJA: D package: 86℃/W, DB package: 96℃/W, N package: 80℃/W, NS package: 76℃/W, PW package: 113℃/W; (7)Storage temperature range, Tstg: –65℃ to 150℃.

Features

SN74HCT00DR features: (1)Operating Voltage Range of 4.5 V to 5.5 V; (2)Outputs Can Drive Up To 10 LSTTL Loads; (3)Low Power Consumption, 20-μA Max ICC; (4)Typical tpd = 10 ns; (5)±4-mA Output Drive at 5 V; (6)Low Input Current of 1 μA Max; (7)Inputs Are TTL-Voltage Compatible.

Diagrams

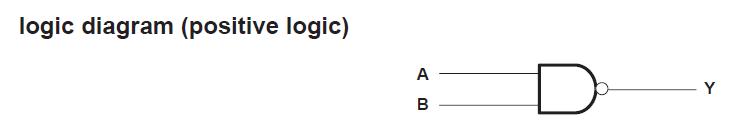

SN74HCT00DR logic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

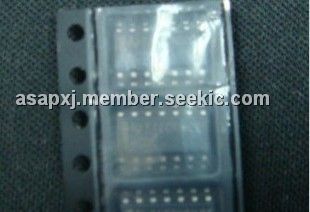

SN74HCT00DR
SN74HCT00DR

Texas Instruments

Gates (AND / NAND / OR / NOR) Quadruple 2-Input Positive-NAND gates

Data Sheet

0-1: $0.32
1-25: $0.18
25-100: $0.15
100-250: $0.11
SN74HCT00DRE4
SN74HCT00DRE4

Texas Instruments

Gates (AND / NAND / OR / NOR) Quadruple 2-Input Positive-NAND gates

Data Sheet

0-1: $0.23
1-25: $0.19
25-100: $0.14
100-250: $0.09
SN74HCT00DRG4
SN74HCT00DRG4

Texas Instruments

Gates (AND / NAND / OR / NOR) Quadruple 2-Input Positive-NAND gates

Data Sheet

0-1: $0.23
1-25: $0.16
25-100: $0.12
100-250: $0.09
