Product Summary

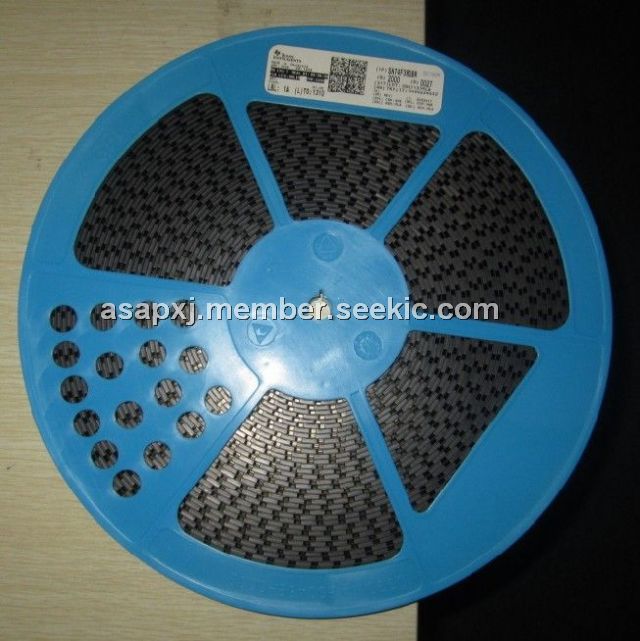

The SN74F38DBR is a quadruple 2-input Positive-NAND buffer with open-collector outputs. It contains four independent 2-input NAND buffer gates with open-collector outputs. The SN74F38DBR performs the Boolean functions Y=A×B or Y=A+B in positive logic. The open-collector outputs require pull up resistors to perform correctly. It may be connected to other open-collector outputs to implement active-low wired-OR or active-high wired-AND functions. Open-collector devices are often used to generate higher VOH levels. The SN74F38DBR is characterized for operation over the full military temperature range of 0℃ to 70℃.

Parametrics

SN74F38DBR absolute maximum ratings: (1)Supply voltage range, VCC:–0.5V to 7V; (2)Input voltage range, VI:–0.5V to 7V; (3)Input current range:–30mA to 5mA; (4)Voltage range applied to any output in the high state:–0.5V to VCC; (5)Current into any output in the low state: 128mA; (6)Operating free-air temperature range:0℃ to 70℃; (7)Storage temperature range:–65℃ to 150℃.

Features

SN74F38DBR feature: Package Options Include Plastic Small-Outline Packages, Ceramic Chip Carriers, and Standard Plastic and Ceramic 300-mil DIPs.

Diagrams

SN74F38DBR block diagram
