Product Summary
The SN74F138DR is a 3-line to 8-line decoder/demultiplexer. The SN74F138DR is designed to be used in high-performance memory-decoding or datarouting applications requiring very short propagation delay times. In high-performance memory systems, these decoders can be used to minimize the effects of system decoding. When employed with high-speed memories utilizing a fast enable circuit, the delay times of this decoder and the enable time of the memory are usually less than the typical access time of the memory. This means that the effective system delay introduced by the decoder is negligible.
Parametrics
SN74F138DR absolute maximum ratings: (1)Supply voltage range, VCC:-0.5V to 7V; (2)Input voltage range, VI: -1.2V to 7V; (3)Input current range: -30mA to 5mA; (4)Voltage range applied to any output in the high state:-0.5V to VCC; (5)Current into any output in the low state: 40mA; (6)Operating free-air temperature range: 0℃ to 70℃; (7)Storage temperature range:-65℃ to 150℃.
Features
SN74F138DR features: (1)Designed Specifically for High-Speed Memory Decoders and Data Transmission Systems; (2)Incorporates Three Enable Inputs to Simplify Cascading and/or Data Reception; (3)Package Options Include Plastic Small-Outline Packages, Ceramic Chip Carriers, and Standard Plastic and Ceramic 300-mil DIPs.

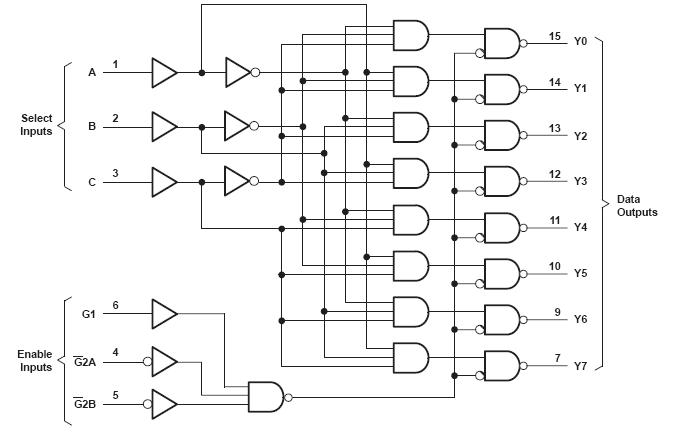

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74F138DR |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers 3-line to 8-line Decoder/Demltplxr |
Data Sheet |
|
|
||||||||||||
|
SN74F138DRE4 |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers 3-line to 8-line Decoder/Demltplxr |
Data Sheet |
|
|
||||||||||||
|
SN74F138DRG4 |
Texas Instruments |
Encoders, Decoders, Multiplexers & Demultiplexers 3-line to 8-line Decoder/Demltplxr |
Data Sheet |
|
|
||||||||||||
