Product Summary

The SN74CBTLV3861PWR is a low-voltage 10-bit FET bus switch. The SN74CBTLV3861PWR provides ten bits of high-speed bus switching. The low on-state resistance of the switch allows connections to be made with minimal propagation delay. The SN74CBTLV3861PWR is organized as one 10-bit bus switch. When output enable (OE) is low, the 10-bit bus switch is on, and port A is connected to port B. When OE is high, the switch is open, and the high-impedance state exists between the two ports.

Parametrics

SN74CBTLV3861PWR absolute maximum ratings: (1)Supply voltage range, VCC: 0.5 V to 4.6 V; (2)Input voltage range, VI: 0.5 V to 4.6 V; (3)Continuous channel current: 128 mA; (4)Input clamp current, IIK (VI/O<0): 50 mA; (5)Package thermal impedance, θJA: DBQ package: 61℃/W; (6)DGV package : 86℃/W; (7)DW package: 46℃/W; (8)NS package: 65℃/W; (9)PW package: 88℃/W; (10)Storage temperature range, Tstg: 65℃ to 150℃.

Features

SN74CBTLV3861PWR features: (1)5-Ω Switch Connection Between Two Ports; (2)Rail-to-Rail Switching on Data I/O Ports; (3)Ioff Supports Partial-Power-Down Mode Operation; (4)Flow-Through Architecture Optimizes PCB Layout; (5)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II.

Diagrams

SN74CBTLV3861PWR Pin Configuration

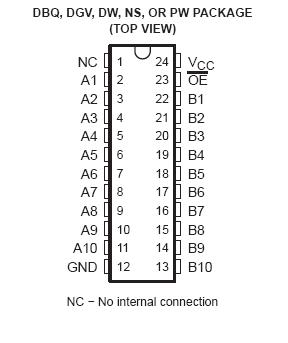

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN74CBTLV3861PWR
SN74CBTLV3861PWR

Texas Instruments

Digital Bus Switch ICs Low Volt. 10-Bit FET

Data Sheet

0-1: $0.55
1-25: $0.42
25-100: $0.37
100-250: $0.32
