Product Summary
The TSM101ACDT is a voltage and current controller. The TSM101ACDT incorporates a high stability series band gap voltage reference, two ORed operational amplifiers and a current source. The TSM101ACDT provides a feedback through an optocoupler to the PWM controller IC in the primary side. The device can be used to modify the level of current limitation by offsetting the information coming from the current sensing resistor.
Parametrics
TSM101ACDT absolute maximum ratings: (1)DC supply Voltage:36 V; (2)Output Current:20 mA; (3)Power Dissipation:200 mW; (4)Input Voltage:-0.3V to VCC -1.5 V; (5)Input Current:±1 mA; (6)Storage Temperature:-40℃ to +125℃; (7)Maximum Junction Temperature:150℃; (8)Thermal Resistante Junction to Ambiant:130℃/W to 200℃/W.
Features
TSM101ACDT features: (1)1.24V series voltage reference with 10mA output current and 1% ; (2)precision; (3)two operational amplifiers with ored output and 1MHZ gain bandwidth product; (4)built-in current generator with enable/disable function; (5)4.5 to 32V supply voltage range ; (6)SO8 and DIP8 packages.

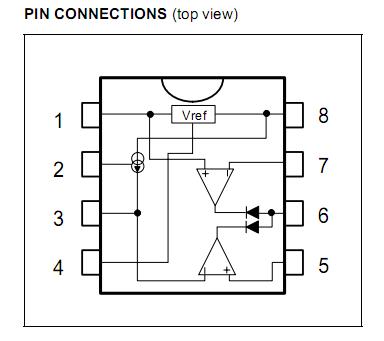

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TSM101ACDT |
STMicroelectronics |
DC/DC Switching Controllers Voltage/Current Cont |
Data Sheet |
|
|
||||||||||||
