Product Summary
The SN74CBT3384APWR is a 10-bit FET bus switch. The SN74CBT3384APWR provides ten bits of high-speed TTL-compatible bus switching. The low on-state resistance of the switch allows connections to be made with minimal propagation delay. The SN74CBT3384APWR is organized as two 5-bit switches with separate output-enable (OE) inputs. When OE is low, the switch is on, and port A is connected to port B. When OE is high, the switch is open, and the high-impedance state exists between the two ports.
Parametrics
SN74CBT3384APWR absolute maximum ratings: (1)Supply voltage range, VCC: 0.5 V to 7 V; (2)Input voltage range, VI: 0.5 V to 7 V; (3)Continuous channel current: 128 mA; (4)Input clamp current, IIK (VI/O＜0): 50 mA; (5)Package thermal impedance, θJA: DB package: 63℃/W; (6)DBQ package: 61℃/W; (7)DGV package: 86℃/W; (8)DW package: 46℃/W; (9)PW package: 88℃/W; (10)Storage temperature range, Tstg: 65℃ to 150℃.
Features
SN74CBT3384APWR features: (1)5-Ω Switch Connection between Two Ports; (2) TTL-Compatible Input Levels.

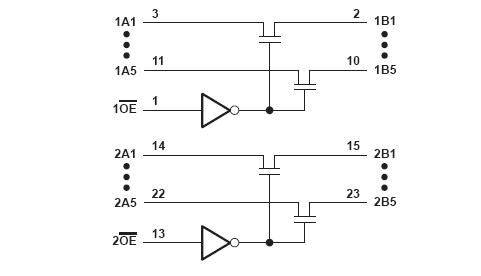

Diagrams
