Product Summary
The LM4865M is a mono bridged audio power amplifier with DC volume control, capable of delivering 750 mW of continuous average power into an 8W load with less than 1% THD from a 5V power supply. Switching between bridged speaker mode and headphone (single ended) mode is accomplished via a headphone sense pin. In addition, LM4865M is set into low current consumption shutdown mode (0.7 μA typical) by lowering the DC Vol/SD pin to below 0.3V.
Parametrics
LM4865M absolute maximum ratings: (1)Supply Voltage: 6.0V; (2)Storage Temperature: -65℃ to +150℃; (3)Input Voltage: -0.3V to VDD +0.3V; (4)Power Dissipation: Internally Limited; (5)ESD Susceptibility: 2000V; (6)ESD Susceptibility: 200V; (7)Junction Temperature: 150℃; (8)Soldering Information: Vapor Phase (60 sec.) 215℃, Infrared (15 sec.) 220℃.
Features
LM4865M features: (1)DC volume control; (2)Headphone amplifier mode; (3)"Click and pop" suppression; (4)Shutdown control when volume control pin is low; (5)Thermal shutdown protection.

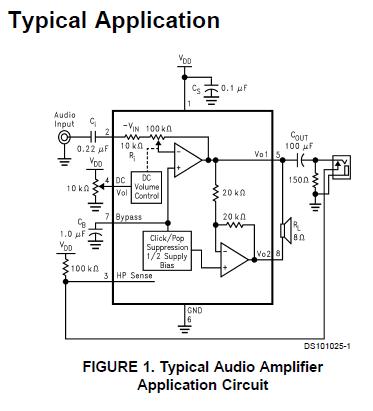

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM4865M |
National Semiconductor (TI) |
Audio Amplifiers |
Data Sheet |
|
|
||||||||||||
 |
LM4865MM |
National Semiconductor (TI) |
Audio Amplifiers |
Data Sheet |
|
|
||||||||||||
|
LM4865MM/NOPB |
National Semiconductor (TI) |
Audio Amplifiers |
Data Sheet |
|
|
||||||||||||
|
LM4865MMX/NOPB |
National Semiconductor (TI) |
Audio Amplifiers |
Data Sheet |
|
|
||||||||||||
|
LM4865MX |
National Semiconductor (TI) |
Audio Amplifiers |
Data Sheet |
|
|
||||||||||||
|
LM4865MX/NOPB |
National Semiconductor (TI) |
Audio Amplifiers |
Data Sheet |
|
|
||||||||||||
|
LM4865MMX |
National Semiconductor (TI) |
Audio Amplifiers |
Data Sheet |
|
|
||||||||||||
|
LM4865M/NOPB |
National Semiconductor (TI) |
Audio Amplifiers |
Data Sheet |
|
|
||||||||||||
