Product Summary

Parametrics

Manufacturer: Texas Instruments
Independent Circuits: 1
Voltage Supply Source: Single Supply
Mounting Type: Surface Mount
Type: Decoder/Demultiplexer

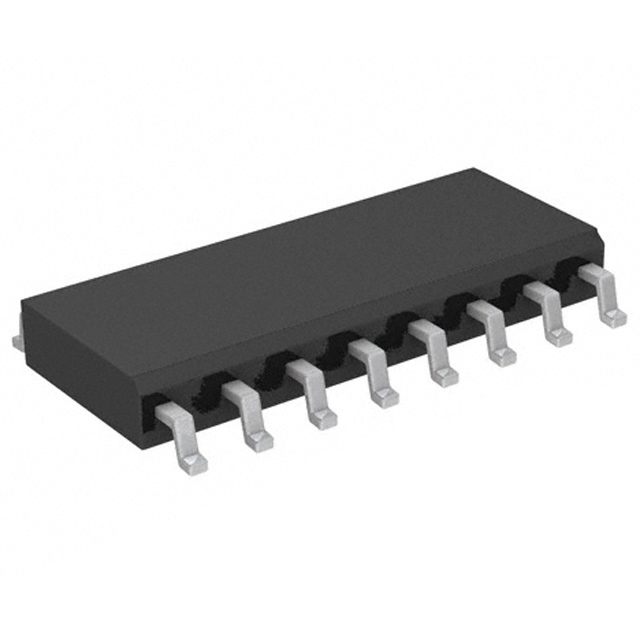

Package / Case: 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 16-SOIC N
Voltage - Supply: 4.5 V ~ 5.5 V
Operating Temperature: 0°C ~ 70°C
Packaging: Tube
Circuit: 2 x 1:4
Series: 74ALS
Current - Output High, Low: 100µA, 8mA

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SN74ALS156D
SN74ALS156D
Texas Instruments
Encoders, Decoders, Multiplexers & Demultiplexers Decoders/DeMltplxrs w/Open-Collector out
Data Sheet
0-1: $2.10
1-25: $1.72
25-100: $1.55
100-250: $1.43
SN74ALS156DE4
SN74ALS156DE4
Texas Instruments
Encoders, Decoders, Multiplexers & Demultiplexers Decoders/DeMltplxrs w/Open-Collector out
Data Sheet
0-1: $2.10
1-25: $1.72
25-100: $1.55
100-250: $1.43
SN74ALS156DG4
SN74ALS156DG4
Texas Instruments
Encoders, Decoders, Multiplexers & Demultiplexers Decoders DeMltplxrs
Data Sheet
0-1: $2.10
1-25: $1.72
25-100: $1.55
100-250: $1.43
SN74ALS156DRE4
SN74ALS156DRE4
Texas Instruments
Encoders, Decoders, Multiplexers & Demultiplexers Decoders/DeMltplxrs w/Open-Collector out
Data Sheet
0-1860: $0.97
1860-2000: $0.94
2000-2500: $0.94
2500-5000: $0.90
SN74ALS156DRG4
SN74ALS156DRG4
Texas Instruments
Encoders, Decoders, Multiplexers & Demultiplexers Decoders DeMltplxrs
Data Sheet
0-1860: $0.97
1860-2000: $0.94
2000-2500: $0.94
2500-5000: $0.90
SN74ALS156DR
SN74ALS156DR
Texas Instruments
Encoders, Decoders, Multiplexers & Demultiplexers Decoders/DeMltplxrs w/Open-Collector out
Data Sheet
0-1860: $0.97
1860-2000: $0.94
2000-2500: $0.94
2500-5000: $0.90
