Product Summary

The SN74ABT16952DGGR is a 16-bit registered transceiver with 3-state outputs.

Parametrics

SN74ABT16952DGGR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 to 7V; (2)Input voltage range, VI: -0.5 to 7V; (3)Voltage range applied to any output in the high or power-off state, VO: -0.5 to 5.5V; (4)Current into any output in the low state, IO: 96mA; (5)Input clamp current, IIK: -18mA; (6)Package thermal impedance: 81℃/W; (7)Storage temperature range, TSTG: -65 to 150℃.

Features

SN74ABT16952DGGR features: (1)Members of the Texas instruments widebus family; (2)State-of-the-art EPIC-IIB BICMOS design significantly reduces power dissipation; (3)Latch-up performance exceeds 500mA per JEDEC standard JESD-17; (4)Distributed VCC and GND pin configuration minimizes high-speed switching noise; (5)Flow-through architecture optimizes PCB layout.

Diagrams

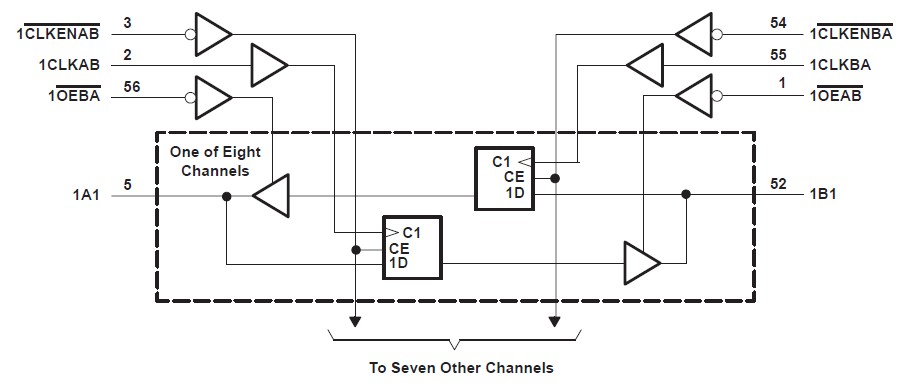

SN74ABT16952DGGR circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SN74ABT16952DGGR
SN74ABT16952DGGR
Texas Instruments
Bus Transceivers 16bit Registered
Data Sheet
0-1485: $1.30
1485-2000: $1.22
2000-5000: $1.19
