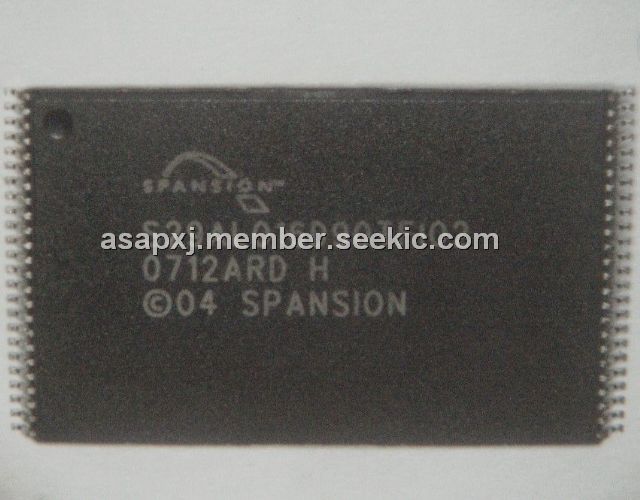

Product Summary
The S29AL016D90TFI02 is a 16 Mbit, 3.0 Volt-only Flash memory organized as 2,097,152 bytes or 1,048,576 words. The device is offered in 48-ball FBGA, and 48-pin TSOP packages. The word-wide data (x16) appears on DQ15–DQ0; the byte-wide (x8) data appears on DQ7–DQ0. The S29AL016D90TFI02 is designed to be programmed in-system with the standard system 3.0 volt VCC supply. A 12.0 V VPP or 5.0 VCC are not required for write or erase operations. The S29AL016D90TFI02 can also be programmed in standard EPROM programmers.
Parametrics
S29AL016D90TFI02 absolute maximum ratings: (1)Storage Temperature: –65 to +150℃; (2)Ambient Temperature with Power Applied: –65 to +125℃; (3)Voltage with Respect to Ground, VCC: –0.5 V to +4.0 V; A9, OE#, and RESET#: –0.5 V to +12.5 V; All other pins: –0.5 V to VCC+0.5 V; (4)Output Short Circuit Current: 200 mA.
Features
S29AL016D90TFI02 features: (1)Single power supply operation: Full voltage range: 2.7 to 3.6 volt read and write operations for battery-powered applications; (2)Manufactured on 200nm process technology: Fully compatible with 0.23 μm Am29LV160D and MBM29LV160E devices; (3)Flexible sector architecture: One 16 Kbyte, two 8 Kbyte, one 32 Kbyte, and thirty-one 64 Kbyte sectors (byte mode); One 8 Kword, two 4 Kword, one 16 Kword, and thirty-one 32 Kword sectors (word mode); (4)A hardware method of locking a sector to prevent any program or erase operations within that sector; (5)Sectors can be locked in-system or via programming equipment; (6)Temporary Sector Unprotect feature allows code changes in previously locked sectors; (7)Unlock Bypass Program Command: Reduces overall programming time when issuing multiple program command sequences; (8)Top or bottom boot block configurations available; (9)Compatibility with JEDEC standards: Pinout and software compatible with single-power supply Flash; (10)Superior inadvertent write protection.

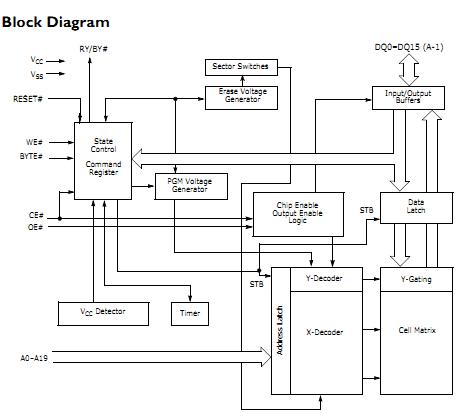

Diagrams
