Product Summary

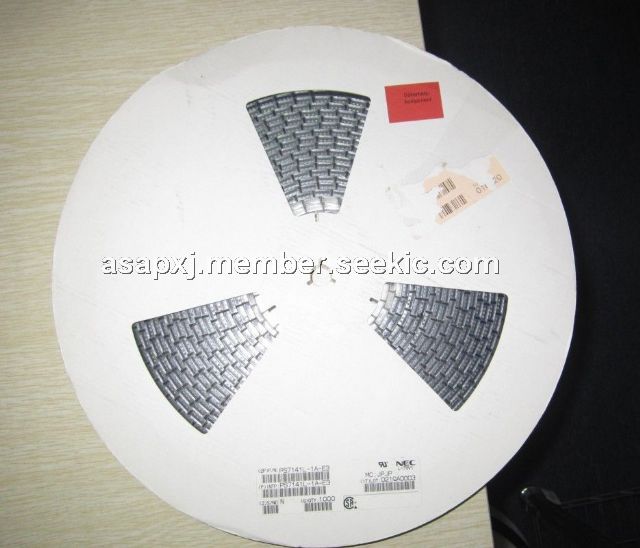

The PS7141L-1A-E3 is a solid state relay. It contains GaAs LEDs on the light emitting side (input side) and MOS FETs on the output side. The device is suitable for analog signal control because of their low offset and high linearity. The PS7141L-1A-E3 has a surface mount type lead. The applications of it are Exchange equipment, Measurement equipment, FA/OA equipment.
Parametrics
PS7141L-1A-E3 absolute maximum ratings: (1)Forward Current:50mA ; (2)Reverse Voltage:5.0V ; (3)Power Dissipation:50mW ; (4)Peak Forward Current:1A ; (5)Break Down Voltage:400V ; (6)Continuous Load Current:Connection A:150mA, Connection B:200mA, Connection C:300mA; (7)Pulse Load Current(AC/DC Connection):300mA ; (8)Power Dissipation:560mW ; (9)Isolation Voltage:1 500Vr.m.s. ; (10)Total Power Dissipation:610mW ; (11)Operating Ambient Temperature:-40℃ to +85℃; (12)Storage Temperature:-40℃ to +100℃.
Features
PS7141L-1A-E3 features: (1)1 channel type (1 a output); (2)Low LED operating current (IF = 2 mA); (3)Designed for AC/DC switching line changer; (4)Small package (6-pin DIP); (5)Low offset voltage; (6)PS7141L-1A: Surface mount type; (7)UL approved: File No. E72422 (S); (8)BSI approved: No. 8245/8246; (9)CSA approved: No. CA 101391.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PS7141L-1A-E3-A |
CEL |
Solid State Relays 1-Ch Normally Open |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
PS710A-1A |
CEL |
Solid State Relays 1-Ch Normally Open |
Data Sheet |
Negotiable |
|
||||||
|
PS710A-1A-A |
CEL |
Solid State Relays 1-Ch Normally Open |
Data Sheet |
Negotiable |
|
||||||
|
PS710AL-1A |
CEL |
Solid State Relays 1-Ch Normally Open |
Data Sheet |
Negotiable |
|
||||||
|
PS710AL-1A-A |
CEL |
Solid State Relays 1-Ch Normally Open |
Data Sheet |
Negotiable |
|
||||||
 |
PS710AL-1A-E3 |
|
SSR OCMOS FET 1.8A NO 6-SMD TR |
Data Sheet |
Negotiable |
|
||||||
|
PS710AL-1A-E3-A |
CEL |
Solid State Relays 1-Ch Normally Open |
Data Sheet |
Negotiable |
|
||||||
