Product Summary

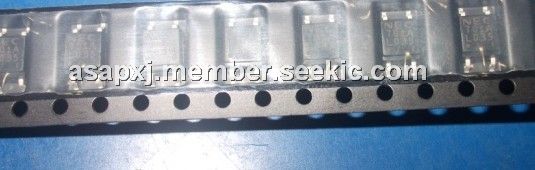

The PS2701A-1-F3 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor to realize an excellent cost performance. This package is SOP (Small Outline Package) type and has shield effect to cut off ambient light. The PS2701A-1-F3 is designed for high density mounting applications.
Parametrics
PS2701A-1-F3 absolute maximum ratings: (1)Diode, Forward Current (DC), IF: 30 mA; Reverse Voltage, VR: 6 V; Power Dissipation Derating, ΔPD/℃: 0.8 mW/℃; Power Dissipation ,PD: 80 mW; Peak Forward Current, IFP: 0.5A; (2)Transistor, Collector to Emitter Voltage, VCEO: 70 V; Emitter to Collector Voltage, VECO: 5 V; Collector Current, IC: 30 mA; Power Dissipation Derating, ΔPC/℃: 1.5 mW/℃; Power Dissipation, PC: 150 mW; (3)Isolation Voltage, BV: 3 750 Vr.m.s; (4)Operating Ambient Temperature, TA: –55 to +100℃; (5)Storage Temperature, Tstg: –55 to +150℃.
Features
PS2701A-1-F3 features: (1)High isolation voltage (BV = 3 750 Vr.m.s.); (2)SOP (Small Outline Package) type; (3)Ordering number of taping product: PS2701A-1-F3, F4: 3500 pcs/reel; (4)Pb-Free product; (5)Safety standards: UL approved: No. E72422; CSA approved: No. CA 101391 (CA5A, CAN/CSA-C22.2 60065, 60950); DIN EN60747-5-2 (VDE0884 Part2) approved: No. 40008902 (Option).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PS2701A-1-F3 |
Other |
|
Data Sheet |
Negotiable |
|
||||||
|
PS2701A-1-F3-A |
CEL |
Transistor Output Optocouplers SGL Tr DC Couplr |
Data Sheet |
|
|
||||||
|
PS2701A-1-F3-P-A |
CEL |
Transistor Output Optocouplers SNGL Tr AC Couplr |
Data Sheet |
|
|
||||||
|
PS2701A-1-F3-M-A |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch |
Data Sheet |
|
|
||||||
|
PS2701A-1-F3-L-A |
CEL |
Transistor Output Optocouplers Hi-Iso Photo 1-Ch |
Data Sheet |
|
|
||||||
