Product Summary

The PS2501L-1-E3 is a high isolation voltage single transistor type multi photocoupler. It contains a GaAs light emitting diode and an NPN silicon phototransistor. The PS2501L-1-E3 is in a plastic DIP (Dual In-line Package). Applications include: Power supply, Telephone/FAX, FA/OA equipment, Programmable logic controller.

Parametrics

PS2501L-1-E3 absolute maximum ratings: (1)Reverse Voltage VR: 6 V; (2)Forward Current (DC) IF: 80 mA/ch; (3)Power Dissipation Derating ΔPD/℃: 1.5mW/℃; (4)Power Dissipation PD: 150mW/ch; (5)Peak Forward Current IFP: 1 A/ch; (6)Transistor Collector to Emitter Voltage VCEO: 80 V; (7)Emitter to Collector Voltage VECO: 7 V; (8)Collector Current IC: 50 mA/ch; (9)Isolation Voltage2 BV: 5 000 Vr.m.s.; (10)Operating Ambient Temperature TA: -55 to +100 ℃; (11)Storage Temperature Tstg: -55 to +150 ℃.

Features

PS2501L-1-E3 features: (1)High isolation voltage (BV = 5 000 Vr.m.s.); (2)High collector to emitter voltage (VCEO = 80 V); (3)High-speed switching (tr = 3μs TYP., tf = 5μs TYP.); (4)Ordering number of tape product: PS2501L-1-F3: 2 000 pcs/reel; (5)Safety standards: UL approved: No. E72422.

Diagrams

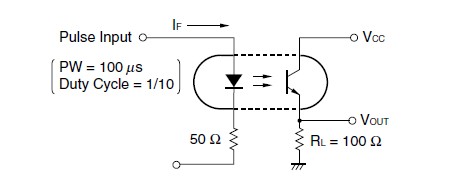

PS2501L-1-E3 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PS2501L-1-E3
PS2501L-1-E3


SMD PHOTO COUPLER T/R

Data Sheet

Negotiable
PS2501L-1-E3-A
PS2501L-1-E3-A

CEL

Transistor Output Optocouplers Hi-Iso Photo 1-Ch

Data Sheet

Negotiable
PS2501L-1-E3-D-A
PS2501L-1-E3-D-A

CEL

Transistor Output Optocouplers Hi-Iso Photo 1-Ch

Data Sheet

Negotiable
PS2501L-1-E3-L-A
PS2501L-1-E3-L-A

CEL

Transistor Output Optocouplers Hi-Iso Photo 1-Ch

Data Sheet

Negotiable
PS2501L-1-E3-K-A
PS2501L-1-E3-K-A

CEL

Transistor Output Optocouplers Hi-Iso Photo 1-Ch

Data Sheet

Negotiable
PS2501L-1-E3-H-A
PS2501L-1-E3-H-A

CEL

Transistor Output Optocouplers Hi-Iso Photo 1-Ch

Data Sheet

Negotiable
PS2501L-1-E3-M-A
PS2501L-1-E3-M-A

CEL

Transistor Output Optocouplers Hi-Iso Photo 1-Ch

Data Sheet

Negotiable
PS2501L-1-E3-W-A
PS2501L-1-E3-W-A

CEL

Transistor Output Optocouplers Hi-Iso Photo 1-Ch

Data Sheet

Negotiable
