Product Summary

The PCM3008TG is a low cost single chip 16-bit stereo audio codec with single-ended analog voltage input and output. The PCM3008TG is suitable for a wide variety of cost-sensitive consumer applications where good performance is required. It is fabricated using a highly advanced CMOS process and is available in a small 16-pin TSSOP package.

Parametrics

PCM3008TG absolute maximum ratings: (1)Supply voltage, VCC: 4 V; (2)Digital input voltage: DEM0, DEM1, DIN, LRCK, SYSCK, BCK, PDAL, PDDA: –0.3 V to 4 V, DOUT: –0.3 V to VCC +0.3 V; (3)Analog input voltage: –0.3 V to VCC +0.3 V; (4)Input current (any pins except supplies): ±10 mA; (5)Ambient temperature under bias: –40℃ to 125℃; (6)Storage temperature: –55℃ to 150℃; (7)Junction temperature: 150℃; (8)Lead temperature (soldering): 260℃, 5 s; (9)Package temperature (IR reflow, peak): 235℃, 10 s.

Features

PCM3008TG features: (1)16-Bit Delta-Sigma ADC and DAC; (2)Stereo ADC: Single-Ended Voltage Input, Anti-Aliasing Filter Included, High Performance, 1/64× Decimation Digital Filter, Digital HPF Included; (3)Stereo DAC: Single-Ended Voltage Output, Analog LPF and FIR Filter Included, High Performance, 8× Oversampling Digital Filter; (4)Audio Data Format: ADC: 16-bit, Left-Justified, DAC: 16-bit, Right-Justified; (5)Special Built-In Functions: Digital De-Emphasis: 32, 44.1, 48 kHz, ADC/DAC Independent Power Down With Pop-Noise Free Muting; (6)Sampling Rate: 8 kHz to 48 kHz; (7)System Clock: 256fS, 384fS, 512fS; (8)Low Voltage Power Supply: 2.4 V TYP, 2.1 V MIN to 3.6 V MAX; (9)Low Power Dissipation: 32 mW at VCC = 2.4 V; (10)Package: 16-Pin TSSOP.

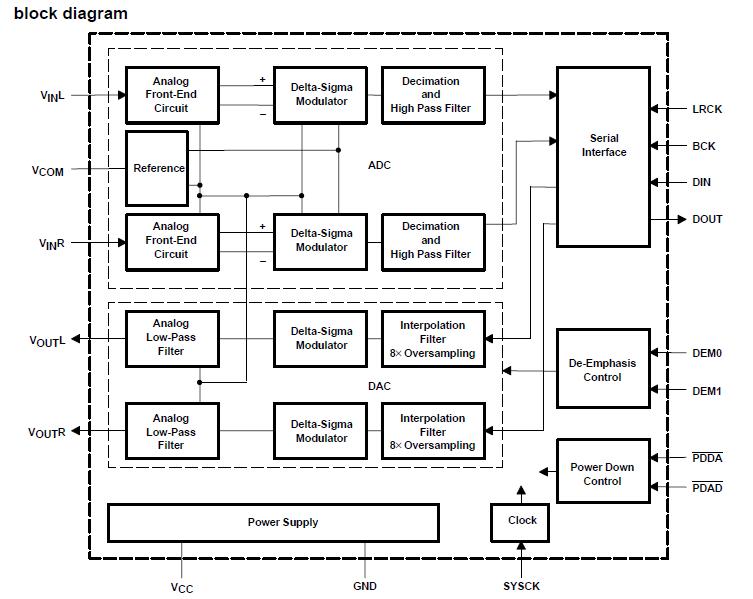

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PCM3008TG4
PCM3008TG4
Texas Instruments
Audio CODECs Lo-Vlt/Lo-Pwr Sngl-end Alg I/O
Data Sheet
0-1: $4.74
1-25: $4.39
25-100: $4.03
100-250: $3.67
