Product Summary
The OP262GSZ is a dual rail-to-rail 15 MHz amplifier. It features the extra speed new designs require, with the benefits of precision and low power operation. With their incredibly low offset voltage of 45 µV (typical) and low noise, the OP262GSZ is perfectly suited for precision filter applications and instrumentation. The low supply current of 500 µA (typical) is critical for portable or densely packed designs. In addition, the rail-to-rail output swing provides greater dynamic range and control than standard video amplifiers. The applications of the OP262GSZ are (1)Portable instrumentation; (2)Sampling ADC amplifier; (3)Wireless LANs; (4)Direct access arrangement; (5)Office automation.
Parametrics
OP262GSZ absolute maximum ratings: (1)Supply Voltage: ±6 V; (2)Input Voltage:±6 V; (3)Differential Input Voltage:±0.6 V; (4)Storage Temperature Range: –65 to +150℃; (5)Operating Temperature Range: –40 to +125℃; (6)Junction Temperature Range:–65 to +150℃; (7)Lead Temperature Range: 300℃.
Features
OP262GSZ features: (1)Wide bandwidth: 15 MHz; (2)Low offset voltage: 325 μV max; (3)Low noise: 9.5 nV/√Hz @ 1 kHz; (4)Single-supply operation: 2.7 V to 12 V; (5)Rail-to-rail output swing; (6)Low TCVOS: 1 μV/℃ typ; (7)High slew rate: 13 V/μs; (8)No phase inversion; (9)Unity-gain stable.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OP262GSZ |
|

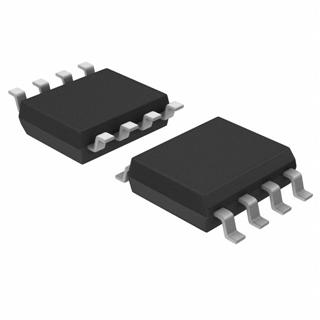

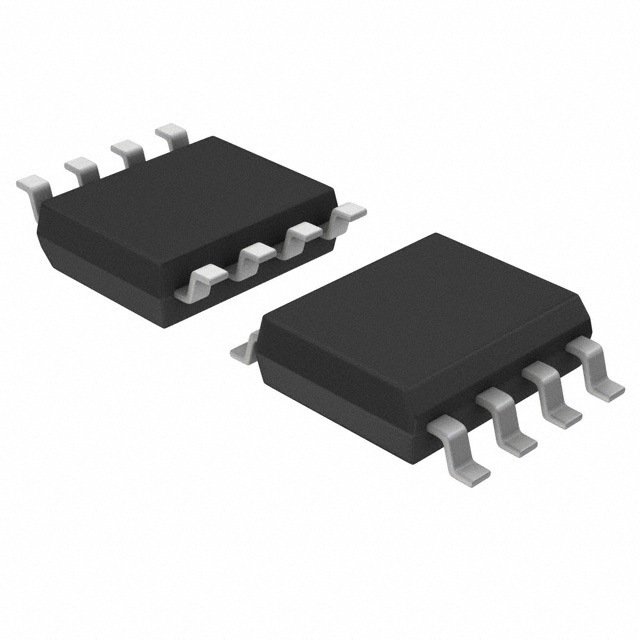

IC OPAMP GP R-R 15MHZ DUAL 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
OP262GSZ-REEL |
|
IC OPAMP GP R-R 15MHZ DUAL 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
OP262GSZ-REEL7 |
|
IC OPAMP GP R-R 15MHZ DUAL 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
