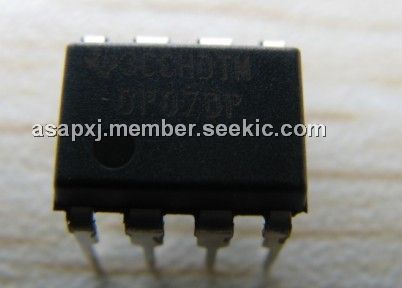

OP07DP

Precision operational amplifier, DIP, Low Noise, 0 to ±14 V Input Voltage

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: OP07DP

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-25

From Other Seller

Part Number:OP07DP
US $0.10 - 1.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The OP07DP represents a breakthrough in operational amplifier performance. Low offset and long-term stability are achieved by means of a low-noise, chopperless, bipolar-input-transistor amplifier circuit. For most applications, external components are not required for offset nulling and frequency compensation. The true differential input, with a wide input voltage range and outstanding common-mode rejection, provides maximum flexibility and performance in high-noise environments and in noninverting applications. Low bias currents and extremely high input impedances are maintained over the entire temperature range. The OP07DP is unsurpassed for low-noise, high-accuracy amplification of very low-level signals. The OP07DP is characterized for operation from 0℃ to 70℃.

Parametrics

OP07DP absolute maximum ratings: (1)Supply voltage, VCC+: 22 V; (2)Supply voltage, VCC–: –22 V; (3)Differential input voltage: ±30 V; (4)Input voltage, VI (either input, see Note 3): ±22 V; (5)Duration of output short circuit: unlimited; (6)Continuous total dissipation at (or below) 25℃ free-air temperature: 500 mW; (7)Operating free-air temperature range, TA: 0℃ to 70℃; (8)Storage temperature range: –65℃ to 150℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

OP07DP features: (1)Low Noise; (2)No External Components Required; (3)Replaces Chopper Amplifiers at a Lower Cost; (4)Single-Chip Monolithic Fabrication; (5)Wide Input Voltage Range: 0 to ±14 V Typ; (6)Wide Supply Voltage Range: ±3 V to ±18 V; (7)Essentially Equivalent to Fairchild μA714 Operational Amplifiers; (8)Direct Replacement for PMI OP07C and OP07D.
