Product Summary
The NJM4560M-TE1 integrated circuit is a high-gain, wide-bandwidth, dual operational amplifier capable of driving 20 V peak-to-peak into 400 Ω loads. The NJM4560M-TE1 combines many of the features of the NJM4558 as well as providing the capability of wider bandwidth, and telecommunications, and many instrumentation applications.
Parametrics
NJM4560M-TE1 absolute maximum ratings: (1)supply voltage: ±18 V; (2)differential input voltage: ±30 V; (3)input voltage: ±15 V; (4)power dissipation: 500 mW; (5)operating temperature range: -20 to +75 ℃; (6)storage temperature range: -40 to +125 ℃.
Features
NJM4560M-TE1 features: (1)operating voltage: ±4 V to ±18 V; (2)wide gain bandwidth product: 100 MHz typ; (3)slew rate: 4 V/μs typ; (4)package outline: DIP8, DMP 8, SIP 8; (5)bipolar technology.

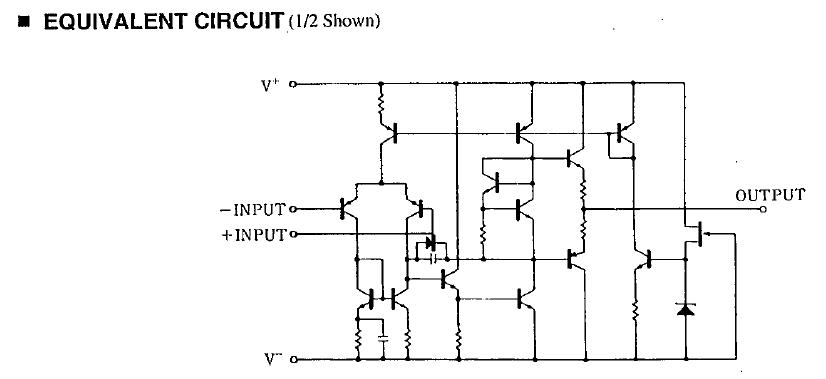

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NJM4560M-TE1 |
NJR |
Operational Amplifiers - Op Amps Dual High Gain |
Data Sheet |
|
|
||||||||||||
