NJM2845DL1-02(TE1)

low dropout voltage regulator, 75dB, 2.2μF, 800mA, 0.18V, TO-252-3

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.19~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.19~0.20

PartNumber:: NJM2845DL1-02(TE1)

Brand:: Japan Radio Co.,ltd - JRC | Pack: TO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-04

From Other Seller

Part Number:NJM2845DL1-02(TE1)
US $0.19 - 0.20
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

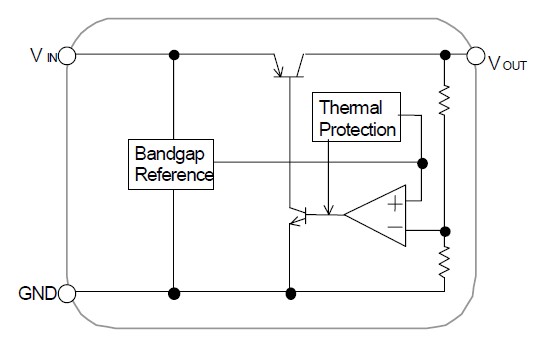

The NJM2845DL1-02 is a low dropout voltage regulator. Advanced Bipolar technology achieves low noise, high ripple rejection and low quiescent current. The NJM2845DL1-02 is 3 terminal type. The product can be selected according to the applications.

Parametrics

NJM2845DL1-02 absolute maximum ratings: (1)Input Voltage VIN: +14 V; (2)Control Voltage VCONT: +14 V; (3)Power Dissipation PD: 10W(Tc≤25℃), 1.0W(Ta≤25℃); (4)Operating Temperature Topr: -40 ～ +85 ℃; (5)Storage Temperature Tstg: -40 ～ +150 ℃.

Features

NJM2845DL1-02 features: (1)High Ripple Rejection 75dB typ. (f=1kHz,3V Version); (2)Output Noise Voltage Vno=45μVrms typ. (Vo=3V Version); (3)Output capacitor with 2.2μF ceramic capacitor (Vo≥2.6V); (4)Output Current Io(max.)=800mA; (5)High Precision Output Vo ±1.0%; (6)Low Dropout Voltage 0.18V typ. (Io=500mA); (7)Internal Short Circuit Current Limit; (8)Internal Thermal Overload Protection; (9)Bipolar Technology; (10)Package Outline TO-252-3.
