Product Summary

The NC7SZ126M5X is a single buffer with 3-STATE output from Fairchild Ultra High Speed Series of TinyLogic. The NC7SZ126M5X is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The NC7SZ126M5X is specified to operate over the 1.65V to 5.5V range. The inputs and output are high impedance above ground when VCC is 0V. Inputs tolerate voltages up to 6V independent of VCC operating voltage. The output tolerates voltages above VCC in the 3-STATE condition.

Parametrics

NC7SZ126M5X absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to +6V; (2)DC Input Voltage (VIN): -0.5V to +6V; (3)DC Output Voltage (VOUT): -0.5V to +6V; (4)DC Input Diode Current (IIK) @VIN < -0.5V: -50 mA; (5)@ VIN > 6V: +20 mA; (6)DC Output Diode Current (IOK) @VOUT < .0.5V: -50 mA; (7)@ VOUT > 6V, VCC = GND: +20 mA; (8)DC Output Current (IOUT): ±50 mA; (9)DC VCC/GND Current (ICC/IGND): ±50 mA; (10)Storage Temperature (TSTG): -65℃ to +150℃; (11)Junction Temperature under Bias (TJ): 150℃; (12)Junction Lead Temperature (TL);(Soldering, 10 seconds): 260℃.

Features

NC7SZ126M5X features: (1)Space saving SOT23 or SC70 5-lead package; (2)Ultra small MicroPak. leadless package; (3)Ultra High Speed; tPD 2.6 ns Typ into 50 pF at 5V VCC; (4)High Output Drive; ±24 mA at 3V VCC; (5)Broad VCC Operating Range; 1.65V to 5.5V; (6)Matches the performance of LCX when operated at 3.3V VCC; (7)Power down high impedance inputs/output; (8)Overvoltage tolerant inputs facilitate 5V to 3V translation; (9)Patented noise/EMI reduction circuitry implemented.

Diagrams

NC7SZ126M5X Connection Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

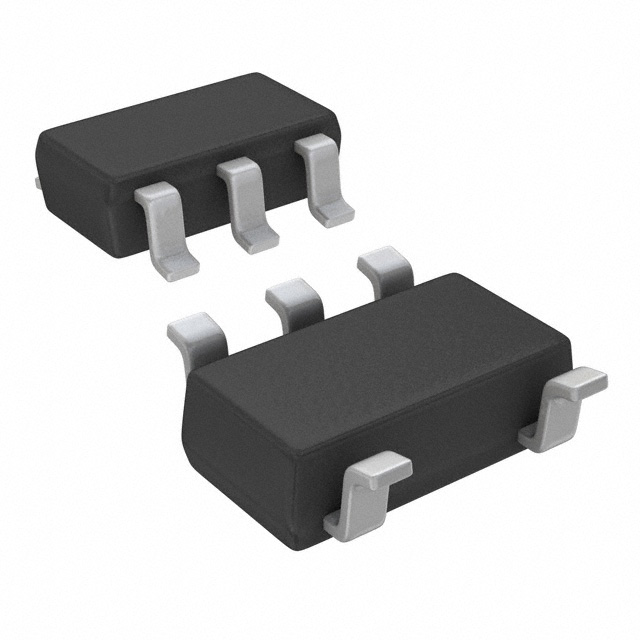

NC7SZ126M5X
NC7SZ126M5X
Fairchild Semiconductor
Buffers & Line Drivers UHS Buffer
Data Sheet
0-1: $0.26
1-25: $0.19
25-100: $0.11
100-250: $0.08
NC7SZ126M5X_Q
NC7SZ126M5X_Q
Fairchild Semiconductor
Buffers & Line Drivers UHS Buffer
Data Sheet
Negotiable
