Product Summary

The MPSA56 is an Amplifier Transistor.

Parametrics

MPSA56 asbolute maximum ratings: (1)Collector-Emitter Voltage, VCEO: 80Vdc; (2)Collector-Base Voltage, VCBO: 80Vdc; (3)Emitter-Base Voltage, VEBO: 4.0 Vdc; (4)Collector Current-Continuous: IC 500 mAdc; (5)Total Device Dissipation @ TA = 25℃, PD: 625mW; Derate above 25℃: 5.0mW/℃; (6)Total Device Dissipation,@ TC = 25℃, PD: 1.5Watts; (7)Derate above 25℃: 12mW/℃; (8)Operating and Storage Junction Temperature Range, TJ, Tstg: -55 to +150℃.

Features

MPSA56 features: (1)Collector-Emitter Breakdown Voltage (IC = 1.0 mAdc, IB = 0), V(BR)CEO: 80Vdc; (2)Emitter-Base Breakdown Voltage (IE = 100μAdc, IC = 0), V(BR)EBO: 4.0Vdc; (3)Collector Cutoff Current (VCE = 60 Vdc, IB = 0) ICES: 0.1μAdc; (4)Collector Cutoff Current, (VCB = 80 Vdc, IE = 0), ICBO: 0.1mAdc.

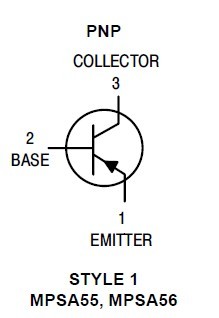

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MPSA56
MPSA56
Central Semiconductor
Transistors Bipolar (BJT) PNP Med Power
Data Sheet
0-10000: $0.05
10000-25000: $0.05
MPSA56 T/R
MPSA56 T/R
NXP Semiconductors
Transistors Bipolar (BJT) TRANS HV TAPE RADIAL
Data Sheet
Negotiable
MPSA56_D26Z
MPSA56_D26Z
Fairchild Semiconductor
Transistors Bipolar (BJT) PNP Transistor General Purpose
Data Sheet
0-1: $0.16
1-25: $0.13
25-100: $0.12
100-250: $0.10
MPSA56_D26Z_Q
MPSA56_D26Z_Q
Fairchild Semiconductor
Transistors Bipolar (BJT) PNP Transistor General Purpose
Data Sheet
Negotiable
MPSA56_D27Z
MPSA56_D27Z
Fairchild Semiconductor
Transistors Bipolar (BJT) PNP General Purpose Transistor
Data Sheet
0-1: $0.16
1-25: $0.13
25-100: $0.12
100-250: $0.10
MPSA56_D27Z_Q
MPSA56_D27Z_Q
Fairchild Semiconductor
Transistors Bipolar (BJT) PNP General Purpose Transistor
Data Sheet
Negotiable
MPSA56_D74Z
MPSA56_D74Z
Fairchild Semiconductor
Transistors Bipolar (BJT) PNP Transistor General Purpose
Data Sheet
0-1: $0.16
1-25: $0.13
25-100: $0.12
100-250: $0.10
MPSA56_D74Z_Q
MPSA56_D74Z_Q
Fairchild Semiconductor
Transistors Bipolar (BJT) PNP Transistor General Purpose
Data Sheet
Negotiable
