Product Summary
The MC9S08QG8CDTE is a low-cost, high-performance HCS08 Family of 8-bit microcontroller unit (MCU). All MCUs in the family use the enhanced HCS08 core and are available with a variety of modules, memory sizes, memory types, and package types. Refer to Table 1-1 for features associated with each device in this family.
Parametrics
MC9S08QG8CDTE absolute maximum ratings: (1)Supply voltage VDD: -0.3 to +3.8 V; (2)Maximum current into VDD IDD: 120 mA; (3)Digital input voltage VIn: -0.3 to VDD + 0.3 V; (4)Instantaneous maximum current, Single pin limit (applies to all port pins), ID: ± 25 mA; (5)Storage temperature range Tstg: -55 to 150 ℃.
Features
MC9S08QG8CDTE features: (1)Object code fully upward-compatible with M68HC05 and M68HC08 Families; (2)All registers and memory are mapped to a single 64-Kbyte address space; (3)16-bit stack pointer (any size stack anywhere in 64-Kbyte address space); (4)16-bit index register (H:X) with powerful indexed addressing modes; (5)8-bit accumulator (A); (6)Many instructions treat X as a second general-purpose 8-bit register; (7)Memory-to-memory data move instructions with four address mode combinations; (8)Overflow, half-carry, negative, zero, and carry condition codes support conditional branching on the results of signed, unsigned, and binary-coded decimal (BCD) operations; (9)Efficient bit manipulation instructions; (10)Fast 8-bit by 8-bit multiply and 16-bit by 8-bit divide instructions; (11)STOP and WAIT instructions to invoke low-power operating modes.

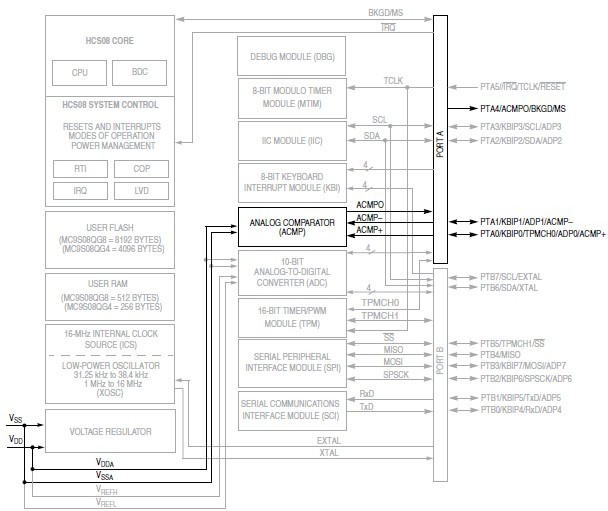

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC9S08QG8CDTE |
Freescale Semiconductor |
8-bit Microcontrollers (MCU) 20mhz 8bit CPU |
Data Sheet |
|
|
||||||||||||
|
MC9S08QG8CDTER |
Freescale Semiconductor |
8-bit Microcontrollers (MCU) CONSUMER ROO 9S08QG |
Data Sheet |
|
|
||||||||||||
