Product Summary

The MC78L09ABPG is a positive voltage regulator. The device is inexpensive, easy-to-use devices suitable for a multitude of applications that require a regulated supply of up to 100 mA. The MC78L09ABPG features internal current limiting and thermal shutdown making it remarkably rugged. No external components are required with the MC78L09ABPG device in many applications. The MC78L09ABPG offers a substantial performance advantage over the traditional zener diode resistor combination, as output impedance and quiescent current are substantially reduced.

Parametrics

MC78L09ABPG absolute maximum ratings: (1)Input Voltage (2.6 V.8.0 V), VI: 30Vdc; (2)Input Voltage (12 V.18 V), VI: 35Vdc; (3)Input Voltage (24 V), VI: 40Vdc; (4)Storage Temperature Range, Tstg: -65 to +150℃; (5)Operating Junction Temperature Range, TJ: 0 to +150℃.

Features

MC78L09ABPG features: (1)Wide Range of Available, Fixed Output Voltages; (2)Low Cost; (3)Internal Short Circuit Current Limiting; (4)Internal Thermal Overload Protection; (5)No External Components Required; (6)Complementary Negative Regulators Offered; (7)Pb-Free Packages are Available; (8)NCV Prefix for Automotive and Other Applications Requiring Site; (9)and Control Changes.

Diagrams

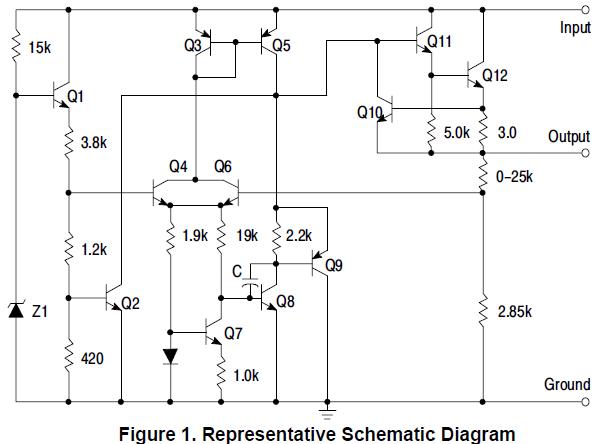

MC78L09ABPG representative schematic diagram
