Product Summary
The MC14093BDR2G is a Quad 2-Input NAND Schmitt Trigger. It is constructed with MOS P-channel and N-channel enhancement mode device in a single monolithic structure. The MC14093BDR2G finds primary use where low power dissipation and/or high noise immunity is desired. The MC14093BDR2G may be used in place of the MC14011B quad 2-input NAND gate for enhanced noise immunity or to “square up” slowly changing waveforms.
Parametrics
MC14093BDR2G absolute maximum ratings: (1)VDD DC Supply Voltage Range: -0.5 to +18.0 V; (2)Vin, Vout Input or Output Voltage Range(DC or Transient): -0.5 to VDD + 0.5 V; (3)Iin, Iout Input or Output Current(DC or Transient) per Pin: ±10 mA; (4)PD Power Dissipation, per Package: 500 mW; (5)TA Ambient Temperature Range: -55 to +125 ℃; (6)Tstg Storage Temperature Range: -65 to +150 ℃; (7)TL Lead Temperature(8-Second Soldering): 260 ℃.
Features
MC14093BDR2G features: (1)Supply Voltage Range = 3.0 Vdc to 18 Vdc; (2)Capable of Driving Two Low-Power TTL Loads or One Low-Power Schottky TTL Load Over the Rated Temperature Range; (3)Triple Diode Protection on All Inputs; (4)Pin-for-Pin Compatible with CD4093; (5)Can be Used to Replace MC14011B; (6)Independent Schmitt-Trigger at each Input; (7)Pb-Free Packages are Available.

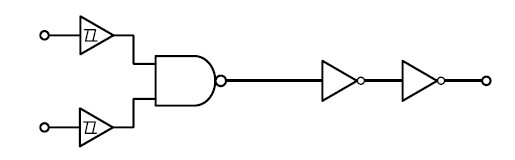

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC14093BDR2G |
ON Semiconductor |
Gates (AND / NAND / OR / NOR) 3-18V Quad 2-Input NAND Schmitt |
Data Sheet |
|
|
||||||||||||||||
