Product Summary

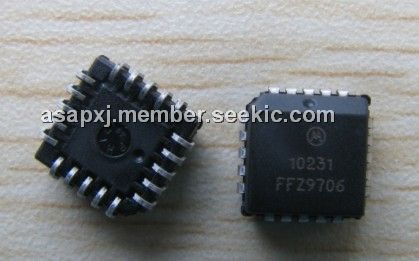

The MC10231FN is a dual master–slave type D flip–flop. Asynchronous Set (S) and Reset (R) override Clock (CC) and Clock Enable(CE) inputs. The MC10231FN may be clocked separately by holding the common clock in the low state and using the enable inputs for the clocking function. If the MC10231FN common clock is to be used to clock the flip–flop, the Clock Enable inputs must be in the low state. In this case, the enable inputs perform the function of controlling the common clock. The output states of the MC10231FN change on the positive transition of the clock. A change in the information present at the data (D) input will not affect the output information at any other time due to master–slave construction.
Parametrics
MC10231FN absolute maximum ratings: (1)Power Supply Drain Current: 72 mAdc; (2)Input current: 290μAdc; (3)Output Voltage: -1.06 to -0.89 at -30℃; -0.96 to -0.81 at 25℃; -0.89 to -0.7 Vdc; (4)Threshold Voltage Logic 1: -1.08Vdc at -30℃; -0.98Vdc at 25℃; -0.91Vdc at 85℃; (5)Threshold Voltage Logic 0: -1.655 to -1.595Vdc; (6)Setup Time 1.0 to 1.5ns; (7)Hold Time: 075 to 0.9ns; (8)Toggle Frequency: 200MHz.
Features
MC10231FN features: (1)PD = 270 mW typ/pkg (No Load); (2)tpd = 2 ns typ; (3)tTog = 225 MHz typ; (4)tr, tf = 2.0 ns typ (20% 80%).

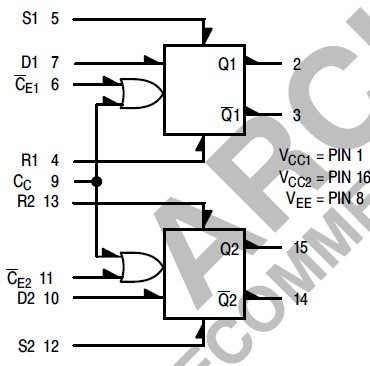

Diagrams
 |
