Product Summary
The MA795WK is the Schottky Barrier diode for switching with Silicon epitaxial planar type.
Parametrics
MA795WK absolute maximum ratings: (1)Reverse voltage (DC): 30 V; (2)Peak reverse voltage: 30 V; (3)Peak forward current: Series 150 mA, Double 110 mA; (4)Forward current (DC): Series 30 mA, Double 20 mA; (5)Junction temperature: 125℃; (6)Storage temperature: -55 to +125℃.
Features
MA795WK features: (1)High-density mounting is possible; (2)Low forward voltage VF , optimum for low voltage rectification: VF < 0.3 V (at IF = 1 mA); (3)Optimum for high frequency rectification because of its short reverse recovery time (trr); (4)SS-Mini type 3-pin package.

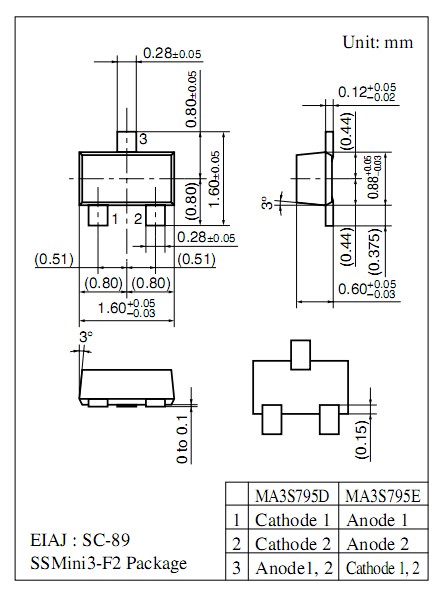

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MA795WK |
Other |
|
Data Sheet |
Negotiable |
|
||||
