Product Summary

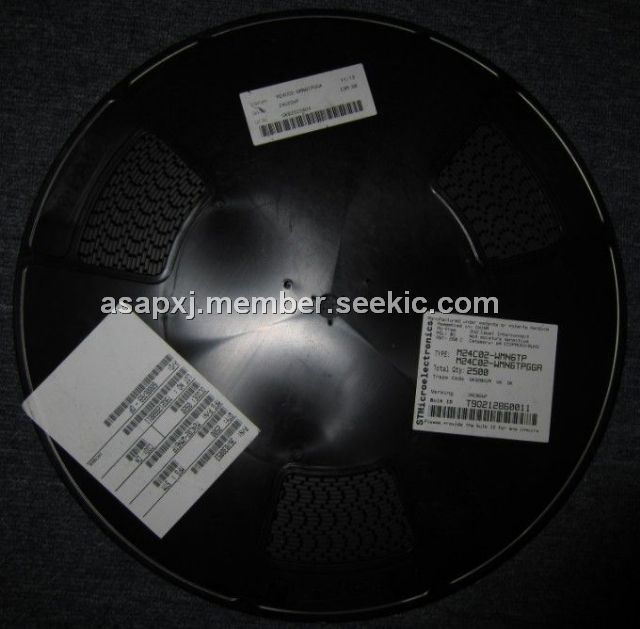

The M24C02-WMN6TP is an EEPROM. This I2C-compatible electrically erasable programmable memory (EEPROM) device is organized as 256×8. In order to meet environmental requirements, ST offers these devices in ECOPAC packages. ECOPACK packages are Lead-free and RoHS compliant.
Parametrics
M24C02-WMN6TP absolute maximum ratings: (1)Ambient operating temperature: -40℃ to 130℃; (2)Storage temperature: -65℃ to 150℃; (3)PDIP-specific lead temperature during soldering: 260℃; (4)Input or output range: -0.5V to 6.5V; (5) Supply voltage: -0.5V to 6.5V; (6) Electrostatic discharge voltage (human body model): -4000V to 4000V.
Features
M24C02-WMN6TP features: (1)Two-wire I2C serial interface Supports 400 kHz protocol; (2)Single supply voltage: 2.5 V to 5.5 V; (3)Write Control input; (4)Byte and Page Write (up to 16 bytes); (5)Random and Sequential Read modes; (6)Self-timed programming cycle; (7)Automatic address incrementing; (8)Enhanced ESD/latch-up protection; (9)More than 1 million write cycles; (10)More than 40-year data retention; (11)Packages: ECOPACK (RoHS compliant).

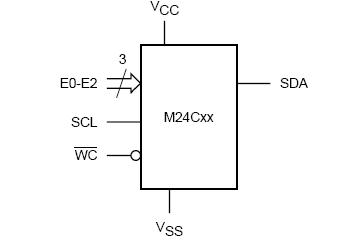

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 M24C02-WMN6TP |
STMicroelectronics |
EEPROM EEPROM S I2C 2K |
Data Sheet |
|
|
||||||||||||
