Product Summary
The LTC1441CS8 is an ultralow power dual comparator with built-in references. The comparator features less than 3.7μA supply current over temperature (LTC1440), a 1.182V ±1% reference, programmable hysteresis (LTC1440/LTC1442) and TTL/CMOS outputs that sink and source current. The reference output can drive a bypass capacitor of up to 0.01μF without oscillation. The applications of the LTC1441CS8 include Battery-Powered System Monitoring, Threshold Detectors, Window Comparators, Oscillator Circuits.
Parametrics
LTC1441CS8 absolute maximum ratings: (1)Voltage, V+ to V-, V + to GND, GND to V-: 12V to -0.3V; (2)IN +, IN-, HYST: (V+ + 0.3V) to (V- -0.3V); (3)REF: (V+ + 0.3V) to (V- -0.3V); (4)OUT (LTC1441/LTC1442): (V + + 0.3V) to (V- -0.3V); (5)Current, IN +, IN –, HYST: 20mA; REF: 20mA; OUT: 50mA; (6)OUT Short-Circuit Duration (V + ≤ 5.5V): Continuous; (7)Power Dissipation: 500mW.
Features
LTC1441CS8 features: (1)Ultralow Quiescent Current: 2.1mA Typ (LTC1440); (2)Wide Supply Range: Single: 2V to 11V; Dual: ±1V to ±5.5V; (3)Input Voltage Range Includes the Negative Supply; (4)Reference Output Drives 0.01mF Capacitor; (5)Adjustable Hysteresis (LTC1440/LTC1442); (6)TTL/CMOS Compatible Outputs; (7)12ms Propagation Delay with 10mV Overdrive; (8)No Crowbar Current; (9)40mA Continuous Source Current; (10)Pin Compatible Upgrades for MAX921/922/923; (11)3mm × 3mm × 0.75mm DFN Package (LTC1440).

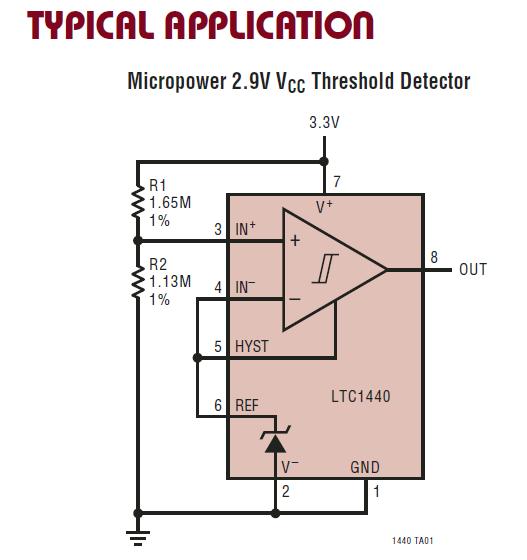

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1441CS8 |
|
IC COMP W/REF LP DUAL 8-SOIC |
Data Sheet |
|
|
||||||||||
|
LTC1441CS8#PBF |
|
IC COMP W/REF LP DUAL 8-SOIC |
Data Sheet |
|
|
||||||||||
|
LTC1441CS8#TR |
|
IC COMP SGL LP 1.182V REF 8SOIC |
Data Sheet |
|
|
||||||||||
|
LTC1441CS8#TRPBF |
|
IC COMP W/REF LP DUAL 8-SOIC |
Data Sheet |
|
|
||||||||||
