Product Summary
The LQG15HN4N7S is a Chip Coil for High Frequency Monolithic Type. It is comprised of chip inductors specifically designed for high frequency applications. The LQG15HN4N7S is designed to realize stable characteristics in high frequency range applying integrated multilayer process. The integrated multilayer process enables a wide range of inductance values with tight tolerance. The applications of the LQG15HN4N7S are High frequency circuits of mobile phones such as PA, ANT, VCO, SAW, Mobile phones such as GSM, CDMA, PDC, “Bluetooth”, W-LAN, High frequency circuits in general.
Parametrics
LQG15HN4N7S general specifications: (1)inductance:4.7nH±0.3nH; (2)test frequency:100MHz; (3)rated current:300mA; (4)max. of DC resistance:0.23ohm; (5)Q(min.):8; (6)test frequency:100MHz; (7)self resonance frequency(min.):6000MHz.
Features
LQG15HN4N7S features: (1)High-Q, stable inductance in high frequency is achieved by the original structure that minimizes stray capacitance. It is suitable for the high frequency circuits of mobile communication equipment; (2)The small size of LQG15H (1.0x0.5x0.5mm) is suitable for small and low profile mobile equipment; (3)The external electrodes with nickel barrier structure provide excellent solder heat resistance; (4)Wide variation in inductance value: 1 to 10nH (E24 step), 10-120nH (E12 step).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQG15HN4N7S00D |
Murata |
RF Inductors 0402 4.7nH +/-0.3nH |
Data Sheet |
Negotiable |
|
||||||||||||
|

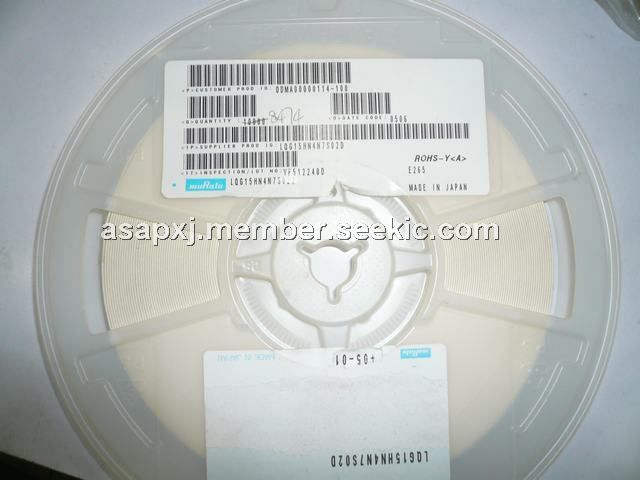

LQG15HN4N7S02D |
Murata |
RF Inductors 4.7 NH +-.3NH |
Data Sheet |
|
|
||||||||||||
