Product Summary

The LP2985AIBPX-1.8 is a 150 mA, fixed-output voltage regulator designed to provide ultra low-dropout and low noise in battery powered applications. Using an optimized VIP (Vertically Integrated PNP) process, the LP2985AIBPX-1.8 delivers unequalled performance in all specifications critical to battery-powered designs. The applications of the LP2985AIBPX-1.8 are Cellular Phone, Palmtop/Laptop Computer, Personal Digital Assistant (PDA), Camcorder, Personal Stereo, Camera.

Parametrics

LP2985AIBPX-1.8 absolute maximum ratings: (1) Storage Temperature Range:-65℃ to +150℃; (2) Operating Junction Temperature Range:-40℃ to +125℃; (3) Lead Temperature (Soldering, 5 sec.):260℃; (4) ESD Rating:2 kV; (5) Power Dissipation:Internally Limited; (6) Input Supply Voltage (Survival):-0.3V to +16V; (7) Input Supply Voltage (Operating):2.5V to +16V; (8) Shutdown Input Voltage (Survival):-0.3V to +16V; (9) Output Voltage (Survival): -0.3V to +9V; (10) IOUT (Survival):Short Circuit Protected; (11) Input-Output Voltage(Survival):-0.3V to +16V.

Features

LP2985AIBPX-1.8 features: (1)Ultra low dropout voltage; (2)Guaranteed 150 mA output current; (3)Smallest possible size (SOT-23, micro SMD package); (4)Requires minimum external components; (5)Stable with low-ESR output capacitor; (6)<1 μA quiescent current when shut down; (7)Low ground pin current at all loads; (8)Output voltage accuracy 1% (A Grade); (9)High peak current capability; (10)Wide supply voltage range (16V max); (11)Low ZOUT: 0.3Ω typical (10 Hz to 1 MHz); (12)Overtemperature/overcurrent protection; (13)-40℃ to +125℃ junction temperature range; (14)Custom voltages available.

Diagrams

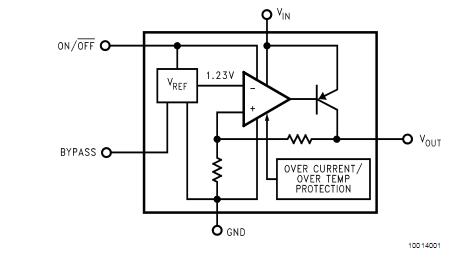

LP2985AIBPX-1.8 block diagram
