Product Summary
The LMX2306TM is a monolithic, integrated frequency synthesizer with prescalers that are designed to be used to generate a very stable low noise signal for controlling the local oscillator of an RF transceiver. It is fabricated using National ABiC V silicon BiCMOS 0.5μ process. The LMX2306TM contains a 8/9 dual modulus prescaler. The LMX2306TM employs a digital phase locked loop technique. When combined with a high quality reference oscillator and loop filter, the LMX2306TM provides the feedback tuning voltage for a voltage controlled oscillator to generate a low phase noise local oscillator signal. Serial data is transferred into the LMX2306TM via a three wire interface (Data, Enable, Clock). Supply voltage can range from 2.3V to 5.5V. The LMX2306TM features ultra low current consumption; LMX2306TM - 1.7 mA at 3V.
Parametrics
LMX2306TM absolute maximum ratings: (1)Power Supply Voltage, VCC1: -0.3V to +6.5V; (2)VCC2: -0.3V to +6.5V; (3)Vp -0.3V to +6.5V; (4)Voltage on Any Pin with GND = 0V (VI): -0.3V to VCC + 0.3V; (5)Storage Temperature Range (TS): -65℃ to +150℃; (6)Lead Temperature (TL)(solder, 4 sec.): +260℃.
Features
LMX2306TM features: (1)2.3V to 5.5V operation; (2)Ultra low current consumption; (3)2.5V VCC JEDEC standard compatible; (4)Programmable or logical power dowmode: ICC = 1μA typical at 3V; (5)Dual modulus prescaler: 8/9; (6)Selectable charge pump TRI-STATE mode; (7)Selectable FastLock mode with timeout counter; (8)MICROWIRE Interface; (9)Digital Lock Detect.

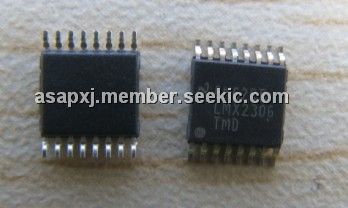

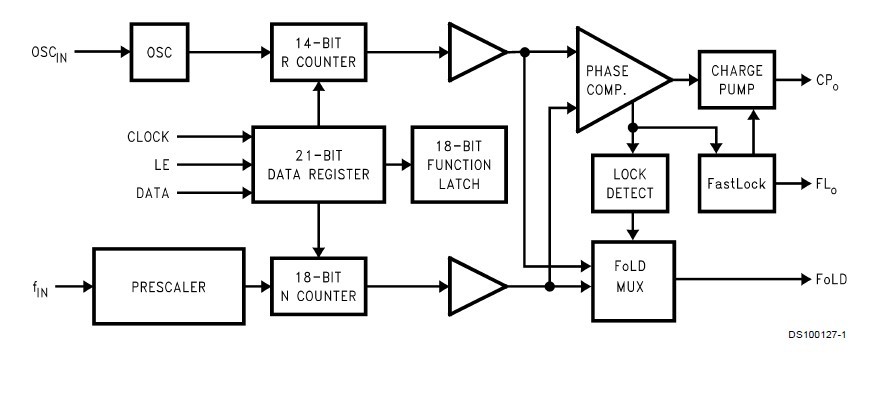

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LMX2306TM/NOPB |
|
IC FREQ SYNTHESIZER 16-TSSOP |
Data Sheet |
Negotiable |
|
||||
|
LMX2306TMX/NOPB |
|
IC FREQ SYNTH LOW PWR 16-TSSOP |
Data Sheet |
Negotiable |
|
||||
