Product Summary
The LMV358IDR is a single, dual and quad low-voltage (2.7 V to 5.5 V) operational amplifier with rail-to-rail output swing. The LMV358IDR is a variation of the standard LMV324. It includes a power-saving shutdown feature that reduces supply current to a maximum of 5 μA per channel when the amplifier is not needed. Channels 1 and 2 are together put in shutdown. While in shutdown, the output actively is pulled low. The LMV358IDR is the most cost-effective solution for applications where low-voltage operation, space saving and low cost are needed. The amplifier was designed specifically for low-voltage (2.7 V to 5 V) operation with performance specifications meeting or exceeding the LMV358IDR device that operates from 5 V to 30 V. Additional features of the LMV358IDR device is a common-mode input voltage range that includes ground, 1-MHz unity-gain bandwidth and 1-V/μs slew rate.
Parametrics
LMV358IDR absolute maximum ratings: (1)Supply voltage, VCC : 5.5 V; (2)Differential input voltage, VID: ±5.5 V; (3)Input voltage, VI: 0 to 5.5 V; (4)Duration of output short circuit to ground at TA = 25℃, VCC ≤ 5.5 V Unlimited; (5)Package thermal impedance, JA: D (8-pin) package: 97℃/W, D (14-pin) package: 86℃/W, D (16-pin) package: 73℃/W, DBV (5-pin) package 206℃/W, DCK (5-pin) package: 252℃/W, DDU (8-pin) package: TBD℃/W, DGK (8-pin) package: 172℃/W, PW (8-pin) package: 149℃/W; (6)PW (14-pin) package: 113℃/W, PW (16-pin) package: 108℃/W; (7)Operating virtual junction temperature, TJ: 150℃; (8)Storage temperature range, Tstg: 65℃ to 150℃.
Features
LMV358IDR features: (1)2.7-V and 5-V Performance; (2)40℃ to 12℃ Operation; (3)Low-Power Shutdown Mode (LMV358IDR); (4)No Crossover Distortion; (5)Low Supply Current, LMV358 210 μA Typ; (6)Rail-to-Rail Output Swing; (7)ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A), 1000-V Charged-Device Model (C101).

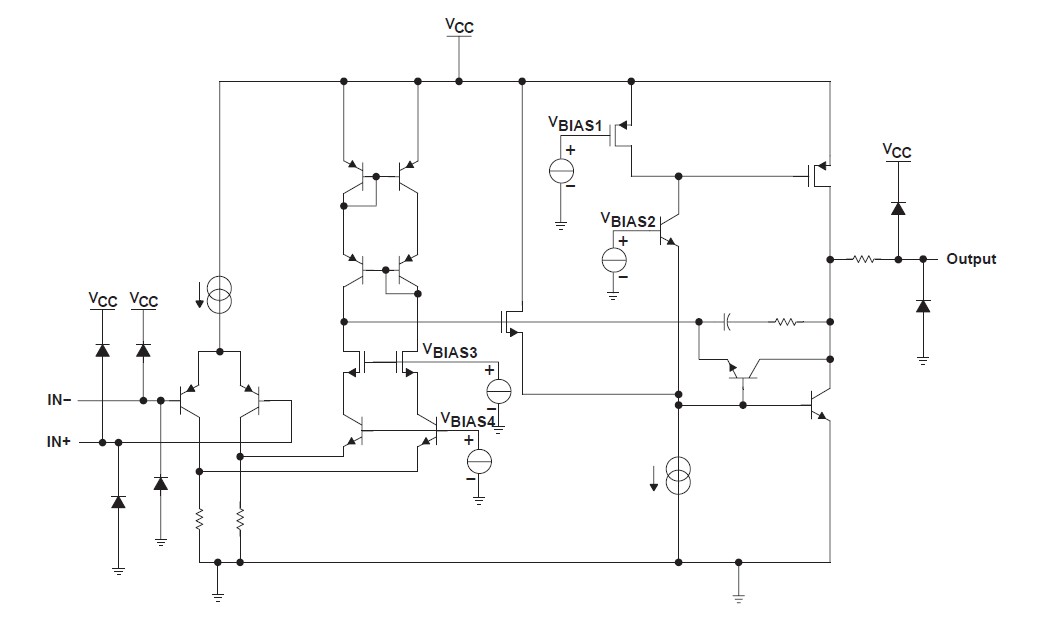

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LMV358IDR |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Lw V R/R Op Amp |
Data Sheet |
|
|
||||||||||||
|
LMV358IDRE4 |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Low-Voltage Rail-to-Rail Out |
Data Sheet |
|
|
||||||||||||
|
LMV358IDRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Low-Voltage Rail-to-Rail Out |
Data Sheet |
|
|
||||||||||||
|
LMV358IDRG4Q1 |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Lo-Vltg Rail to Rail Output Op Amp |
Data Sheet |
Negotiable |
|
||||||||||||
|
LMV358IDRQ1 |
Texas Instruments |
Operational Amplifiers - Op Amps Auto Cat Dual Quad Lo Vltg Rail to Rail |
Data Sheet |
Negotiable |
|
||||||||||||
