Product Summary
The LM324DT is a Low Power Quad Operational Amplifier. The LM324DT consists of four independent, high gain, internally frequency compensated operational amplifiers. It operates from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
Parametrics
LM324DT absolute maximum ratings: (1)Supply voltage:±16V or ±32 V; (2)Input Voltage:-0.3V to Vcc + 0.3 V; (3)Differential Input Voltage:-0.3V to Vcc + 0.3 V; (4)Power Dissipation:N Suffix:500mW, D Suffix:400mW; (5)Output Short-circuit Duration:Infinite; (6)Input Current:50 mA; (7)Operating Free-air Temperature Range:0℃ to +70℃; (8)Storage Temperature Range:-65℃ to +150℃; (9)Thermal Resistance Junction to Ambient:103℃/W; (10)HBM: Human Body Model:250V; (11)MM: Machine Model:150V; (12)CDM: Charged Device Model:1500V.
Features
LM324DT features: (1)Wide gain bandwidth: 1.3MHz; (2)Input common-mode voltage range includes ground; (3)Large voltage gain: 100dB; (4)Very low supply current/ampli: 375μA; (5)Low input bias current: 20nA; (6)Low input offset voltage: 5mV max.(for more accurate applications, use the equivalent parts LM124A-LM224A-LM324A which feature 3mV max.); (7)Low input offset current: 2nA; (8)Wide power supply range: Single supply: +3V to +30V, Dual supplies: ±1.5V to ±15V.

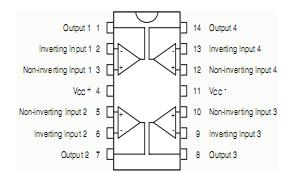

Diagrams
