Product Summary
The LM324 is a Low Power Quad Operational Amplifier. The LM324 consists of four independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. The applications of the LM324 are transducer amplifiers, DC gain blocks and all the conventional op amp circuits which now can be more easily implemented in single power supply systems.
Parametrics
LM324 absolute maximum ratings: (1)Supply Voltage:32V ; (2)Differential Input Voltage:32V ; (3)Input Voltage:-0.3V to +32V ; (4)Input Current(VIN < -0.3V):50 mA ; (5)Output Short-circuit to GND (One Amplifier):Continuous ; (6)Operating Temperature Range:0℃ to +70℃; (7)Storage Temperature Range:-65℃ to +150℃ ; (8)Lead Temperature (Soldering, 10 seconds):260℃.
Features
LM324 features: (1)Internally frequency compensated for unity gain; (2)Large DC voltage gain:100 dB; (3)Wide bandwidth (unity gain) 1 MHz(temperature compensated); (4)Wide power supply range: Single supply 3V to 32V or dual supplies ±1.5V to ±16V; (5)Very low supply current drain (700 μA):essentially independent of supply voltage; (6)Low input biasing current:45 nA(temperature compensated); (7)Low input offset voltage:2 mV and offset current: 5 nA; (8)Input common-mode voltage range includes ground; (9)Differential input voltage range equal to the power supply voltage; (10)Large output voltage swing 0V to V+ - 1.5V.

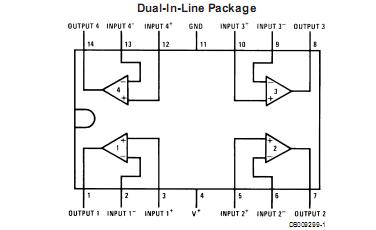

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM324 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
