Product Summary

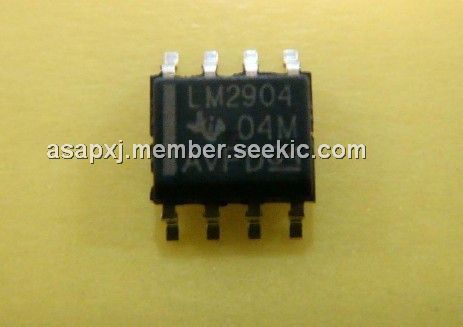

The LM2904DT is a Low power dual operational amplifier. It consists of two independent, high gain, internally frequency compensated operational amplifiers which were designed specifically for automotive and industrial control system. The LM2904DT operates from a single power supply over a wide range of voltages. The low power supply drain is independent of the magnitude of the power supply voltage. The application areas of LM2904DT include transducer amplifiers, DC gain blocks and all the conventional op-amp circuits which now can be more easily implemented in single power supply systems.
Parametrics
LM2904DT absolute maximum ratings: (1)VCC, Supply voltage: ±16 or 32 V; (2)Vid, Differential input voltage: ±32 V; (3)Vin, Input voltage: -0.3 to 32 V; (4)Output short-circuit duration: Infinite; (5)Iin, Input current: 50 mA; (6)Toper, Operating free-air temperature range: -40℃ to +125 ℃; (7)Tstg, Storage temperature range: -65 to +150 ℃; (8)Tj, Maximum junction temperature: 150 ℃; (9)Rthja, Thermal resistance junction to ambient: 125 ℃/W; (10)Rthjc, Thermal resistance junction to case: 40 ℃/W; (11)ESD, HBM: human body model: 300 V; MM: machine model: 200 V; (12)CDM: charged device model: 1.5 kV.
Features
LM2904DT features: (1)Internally frequency compensated; (2)Large DC voltage gain: 100 dB; (3)Wide bandwidth (unity gain): 1.1 MHz (temperature compensated); (4)Very low supply current/op (500 μA) essentially independent of supply voltage; (5)Low input bias current: 20 nA (temperature compensated); (6)Low input offset current: 2 nA; (7)Input common-mode voltage range includes negative rail; (8)Differential input voltage range equal to the power supply voltage; (9)Large output voltage swing 0 V to (VCC+ -1.5 V).

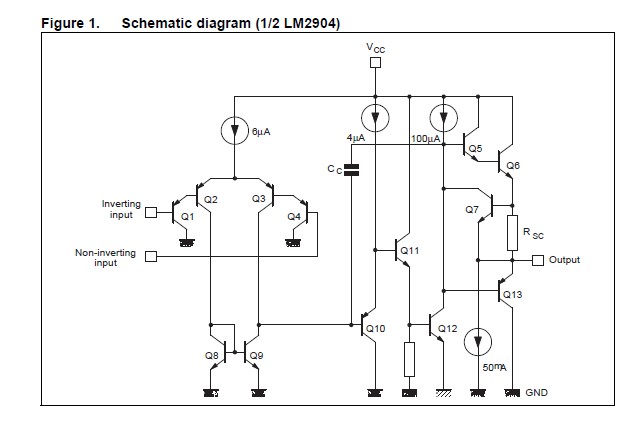

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM2904DT |
STMicroelectronics |
Operational Amplifiers - Op Amps Dual Low Power |
Data Sheet |
|
|
||||||||||||
