Product Summary
The LL2012-F2N2 is a miniature multilayer ceramic chip inductor in a standard 0805 package. Toko’s proprietary laminated ceramic material provides high SRF, excellent Q, and superior reliability. The LL2012-F2N2 is an ideal solution for signal shaping, or RF filtering for high frequency RF and wireless communication devices.
Parametrics
LL2012-F2N2 general specifications: (1)Lo:2.2nH; (2)L Tol.: S; (3)Q 100MHz typ.:13; (4)Q 800MHz typ.:48; (5)SRF typ.:8000MHz; (6)RDC max.:0.10Ω; (7)IDC max.:300mA.
Features

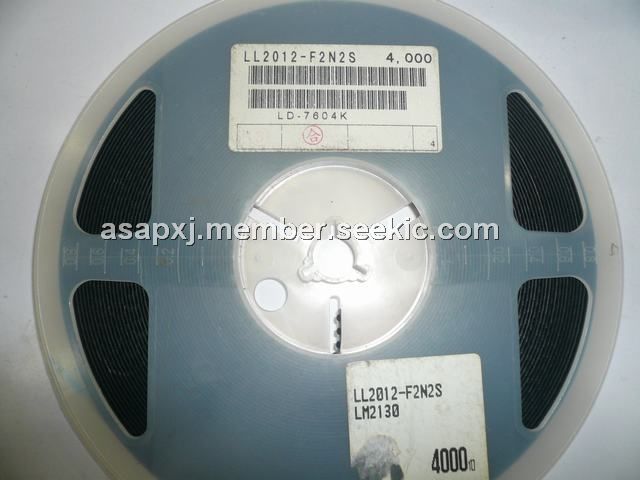

LL2012-F2N2 features: (1)Inductance range: 1.5 to 470nH; (2)Temperature Coefficient: +250ppm/℃; (3)Temperature Range: –40℃ +100℃; (4)Miniature size: 0805 footprint (2.0mm x 1.2mm); (5)Laminated ceramic allows high SRF over 6 GHz; (6)Q: 50 Typical (at 800MHz); (7)S-parameter data available upon request; (8)Packaged on tape and reel in 3,000 & 4,000 piece quantity.
Diagrams
 |
