Product Summary

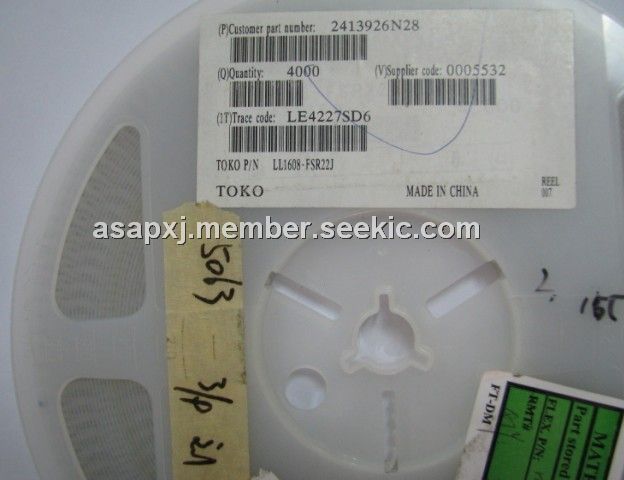

The LL1608-FSR22J2 is a miniature multilayer ceramic chip inductor. TOKO’s proprietary laminated ceramic material provides high SRF, excellent Q, and superior reliability. The LL1608-FSR22J2 allows up to 3 times the current handling of standard multilayers. In addition, the Qs are 1.3-1.6 times higher. The LL1608-FSR22J2 has an industry standard 0603 footprint and comes on tape in 4,000 piece reels. It is an ideal solution for higher current needs in high frequency RF and wireless communications equipment.
Parametrics
LL1608-FSR22J2 general specifications: (1)Inductance at 100MHz:220nH; (2)inductance tolerance: J, K; (3)Q at 100MHz typ.:19; (4)SRF typ.:500MHz; (5)RDC max.:3.50Ω; (6)IDC max.:150mA.
Features
LL1608-FSR22J2 features: (1)Inductance range: 1.2 to 270nH (E-12 Series); (2)Miniature size: 0603 footprint (1.6mm x 0.8mm); (3)Laminated ceramic allows high SRF; (4)Q: 43 to 71 typical (at 1800MHz); (5)High current handling, up to 1A; (6)Temperature coefficient of inductance: +250ppm/℃; (7)Temperature range: –40℃ to +100℃; (8)S-parameter data available upon request; (9)Packaged on tape and reel in 4,000 piece quantity; (10)Reflow solderable.
