Product Summary

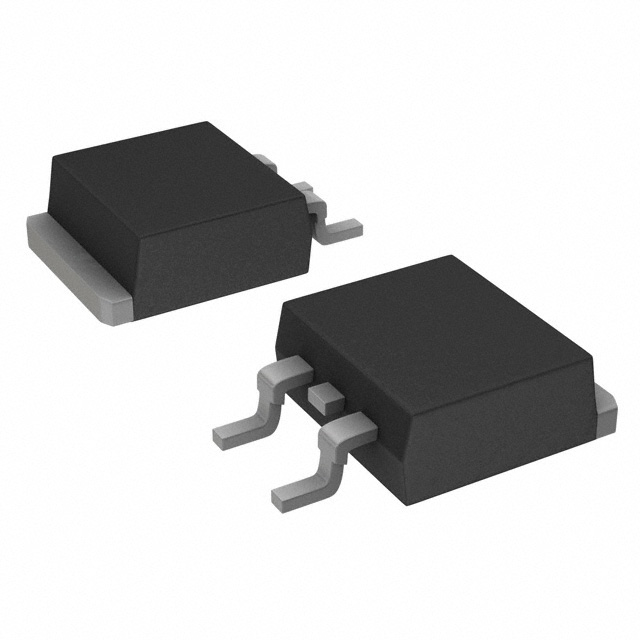

The L78M05CDT three-terminal positive regulator is available in TO-220, TO-220FP, DPAK and IPAK packages and with several fixed output voltages, making it useful in a wide range of applications. The L78M05CDT can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. It employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible.
Parametrics
L78M05CDT absolute maximum ratings: (1)DC Input Voltage (for VO= 5 to 18V): 35 V, (for VO= 20, 24V): 40 V; (2)Output Current: Internally Limited mA; (3)Power Dissipation: Internally Limited mW; (4)Storage Temperature Range: -65 to +150 ℃; (5)Operating Junction Temperature Range: 0 to +150 ℃.
Features
L78M05CDT features: (1)output current to 0.5A; (2)output voltages of 5; 6; 8; 9; 12; 15; 18; 20; 24V; (3)thermal overload protection; (4)short circuit protection; (5)output transition soa protection.

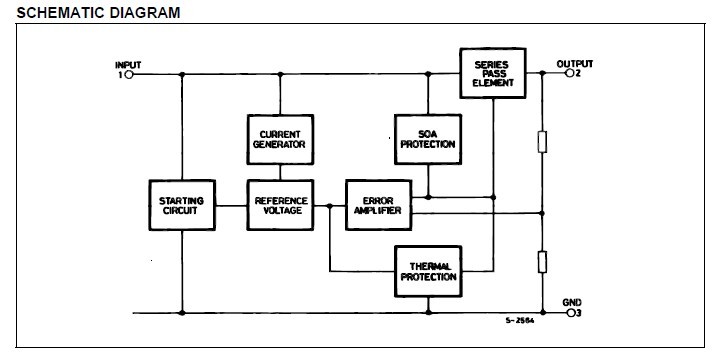

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 L78M05CDT-1 |
STMicroelectronics |
Linear Regulators - Standard 5.0V 0.5A Positive |
Data Sheet |
|
|
||||||||||||
|
L78M05CDT-TR |
STMicroelectronics |
Linear Regulators - Standard 5.0V 0.5A Positive |
Data Sheet |
|
|
||||||||||||
|
L78M05CDT |
STMicroelectronics |
Linear Regulators - Standard 5.0V 0.5A Positive |
Data Sheet |
Negotiable |
|
||||||||||||
