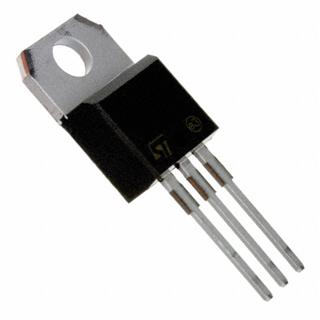

The L7812CV is a three-terminal positive regulator, which is available in TO-220, TO-220FP, TO-3 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications. The L7812CV can provide local on-card regulation, eliminating the distribution problems associated with single point regulation.
Parametrics
L7812CV absolute maximum ratings: (1)DC input voltage: 35 V for VO= 5 to 18 V, 40 V for VO= 20, 24 V; (2)Output current: Internally limited; (3)Power dissipation: Internally limited; (4)Storage temperature range -65 to 150℃; (5)Operating junction temperature range: 0 to 125℃.
Features
L7812CV features: (1)output current to 1.5A; (2)output voltages of 5; 5.2; 6; 8; 8.5; 9; 12; 15; 18; 24V; (3)thermal overload protection; (4)short circuit protection; (5)output transition soa protection.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 L7812CV |
STMicroelectronics |
Linear Regulators - Standard 12V 1.0A Positive |
Data Sheet |
|
|
||||||||||||
|
L7812CV-DG |
STMicroelectronics |
Linear Regulators - Standard POS Voltage Reg IC 3-Terminal 1.5A |
Data Sheet |
|
|
||||||||||||
