Product Summary
The KTA1273Y is an epitaxial planar PNP transistor. The device is suitable for high current application.
Parametrics
KTA1273Y absolute maximum ratings: (1)collector base voltage, VCBO: -30V; (2)collector emitter voltage, VCEO: -30V; (3)emitter base voltage, VEBO: -5V; (4)collector current, IC: -2A; (5)emitter current, IE: 2A; (6)collector power dissipation, PC: 1W; (7)junction temperature, Tj: 150℃; (8)storage temeprautre range, Tstg: -55 to 150℃.
Features
KTA1273Y features: (1)complementary to KTC3205.

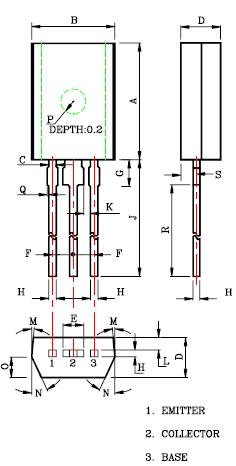

Diagrams
 |
