Product Summary

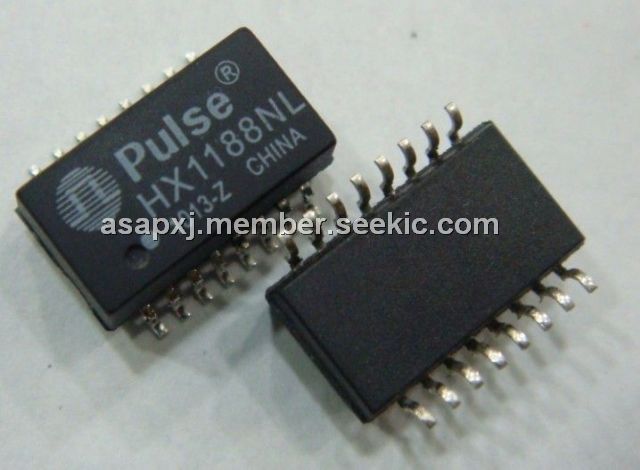

The HX1188NL is a 10/100BASE-T single port surface mount magnetic with Various Turns Ratio.

Parametrics

HX1188NL absolute maximum ratings: (1)Insertion Loss (dB MAX): -1.0 dB at 100kHz-100MHz; (2)Return Loss (dB MIN): -20 dB at 30MHz, -14 dB at 60MHz, -12 dB at 80MHz; (3)Differential to Common Mode Rejection (dB TYP): -42 dB at 30 MHz, -37 dB at 50 MHz, -32 dB at 100 MHz; (4)Crosstalk (dB MIN): -45 dB at 30MHz, -40 dB at 60MHz, -35 dB at 100MHz; (5)Hipot (VRMS MIN): 1500 V.

Features

HX1188NL features: (1)RoHS-5 peak reflow temperature rating 235℃; (2)RoHS-6 peak reflow temperature rating 245℃; (3)Meets IEEE 802.3 specification; (4)Compact footprint for use in the most space-restrictive applications.

Diagrams

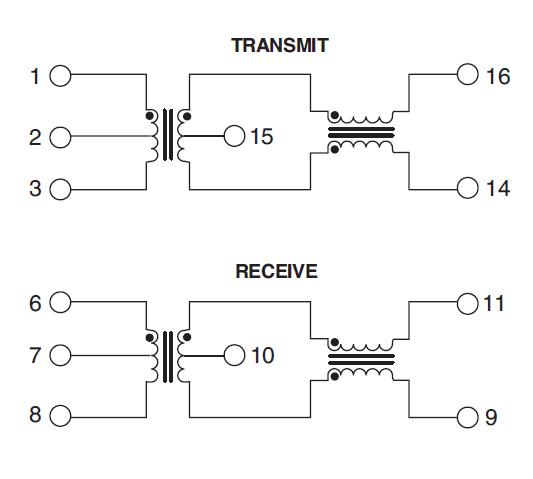

HX1188NL transmit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
HX1188NL
HX1188NL
Pulse
Transformers Audio & Signal XFMR EXT TMP H1102
Data Sheet
0-1: $2.79
1-10: $2.27
10-100: $1.72
100-500: $1.42
HX1188NLT
HX1188NLT
Pulse
Transformers Audio & Signal XFMR EXT TMP H1102
Data Sheet
0-1: $2.79
1-25: $2.27
25-100: $1.72
100-500: $1.42
500-600: $1.42
